| Catalogue Reference | BN1SLR |
|---|---|
| Uniclass2015 | Pr_35_90_31_74 RIGID STAIR NOSINGS |

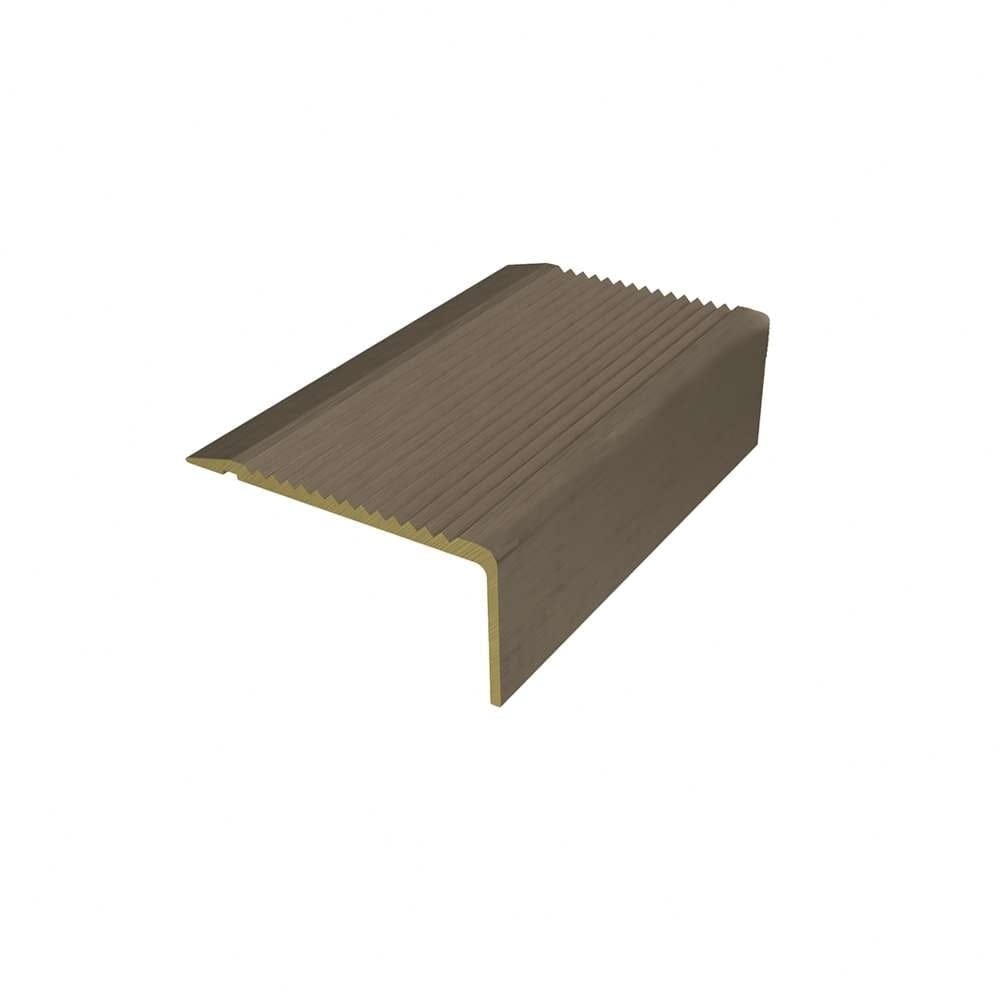

| General Description | Ribbed Tread/Square Front Stair Nosing with Ramped Back Edge |
| Nosing Construction | Solid Stair Nosing |
| Material | Solid Brass Grade H/H CZ108 BS EN12164:2016 |
| Tread Dimension | 62 mm |
| Nose Dimension | 30 mm |
| Gauge | 3.5 mm ramping down to 1mm |
| Supplied Cut To Size, up to a maximum length of | 2700 mm |
| Finishes Available & Light Reflective Values | Antique Bronze - LRV: 9.15 |
| Slip Resistance Values | SRV Wet: 45 SRV Dry: 73 |
| Drilling | Drilled for countersunk screws Undrilled |
| Screw Size | 8 |
| Application | To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino. |
| Suitability | Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings. Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect. |
| Post Consumer Recyclability | This product is 100% recyclable at suitable disposal centres. |
| Profile Type | Stair Nosing |
Price range: £143.45 through £155.95 inc. VAT
The BN1SLR Solid Brass Stair Nosing is a premium-quality, heavy-duty solution designed to enhance both step edge protection and slip resistance in high traffic environments. Manufactured from solid brass grade CZ108 (BS EN12164:2016), this durable profile features a serrated slip-resistant tread and a ramped back edge for seamless installation onto finished floor coverings.

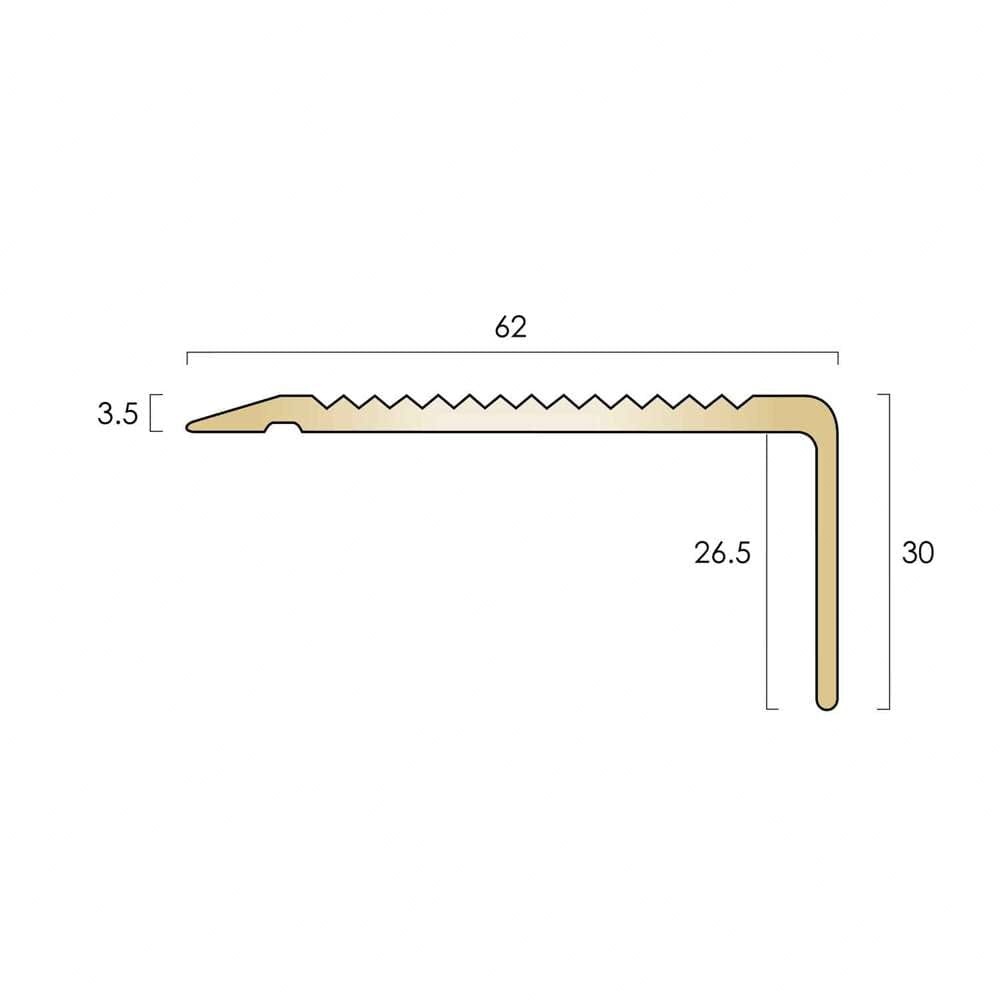

With a 62mm tread and 30mm square front, the BN1SLR provides strong visual definition and long-lasting edge protection. The profile has a 3.5mm gauge ramping down to 1mm, allowing it to sit neatly on resilient flooring such as LVT, vinyl, lino, laminates and ceramics, while also being suitable for direct fixing to stone and timber stairs.
Designed for heavy foot traffic areas including hotels, pubs, schools, retail units, offices and apartment buildings, the BN1SLR delivers dependable durability with a measured Slip Resistance Value (SRV) of 45 wet and 73 dry.
Available in CAT’s four signature brass finishes, including hand-finished antique options, this nosing can be supplied undrilled or pre-drilled for countersunk screw fixings (Size 8). Each length is cut to size up to 2700mm for precise installation. The product is also 100% recyclable at suitable disposal centres.
| Catalogue Reference | BN1SLR |
|---|---|
| Uniclass2015 | Pr_35_90_31_74 RIGID STAIR NOSINGS |
| General Description | Ribbed Tread/Square Front Stair Nosing with Ramped Back Edge |
| Nosing Construction | Solid Stair Nosing |
| Material | Solid Brass Grade H/H CZ108 BS EN12164:2016 |
| Tread Dimension | 62 mm |
| Nose Dimension | 30 mm |
| Gauge | 3.5 mm ramping down to 1mm |
| Supplied Cut To Size, up to a maximum length of | 2700 mm |
| Finishes Available & Light Reflective Values | Antique Bronze - LRV: 9.15 |
| Slip Resistance Values | SRV Wet: 45 SRV Dry: 73 |
| Drilling | Drilled for countersunk screws Undrilled |
| Screw Size | 8 |
| Application | To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino. |
| Suitability | Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings. Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect. |
| Post Consumer Recyclability | This product is 100% recyclable at suitable disposal centres. |
| Profile Type | Stair Nosing |
