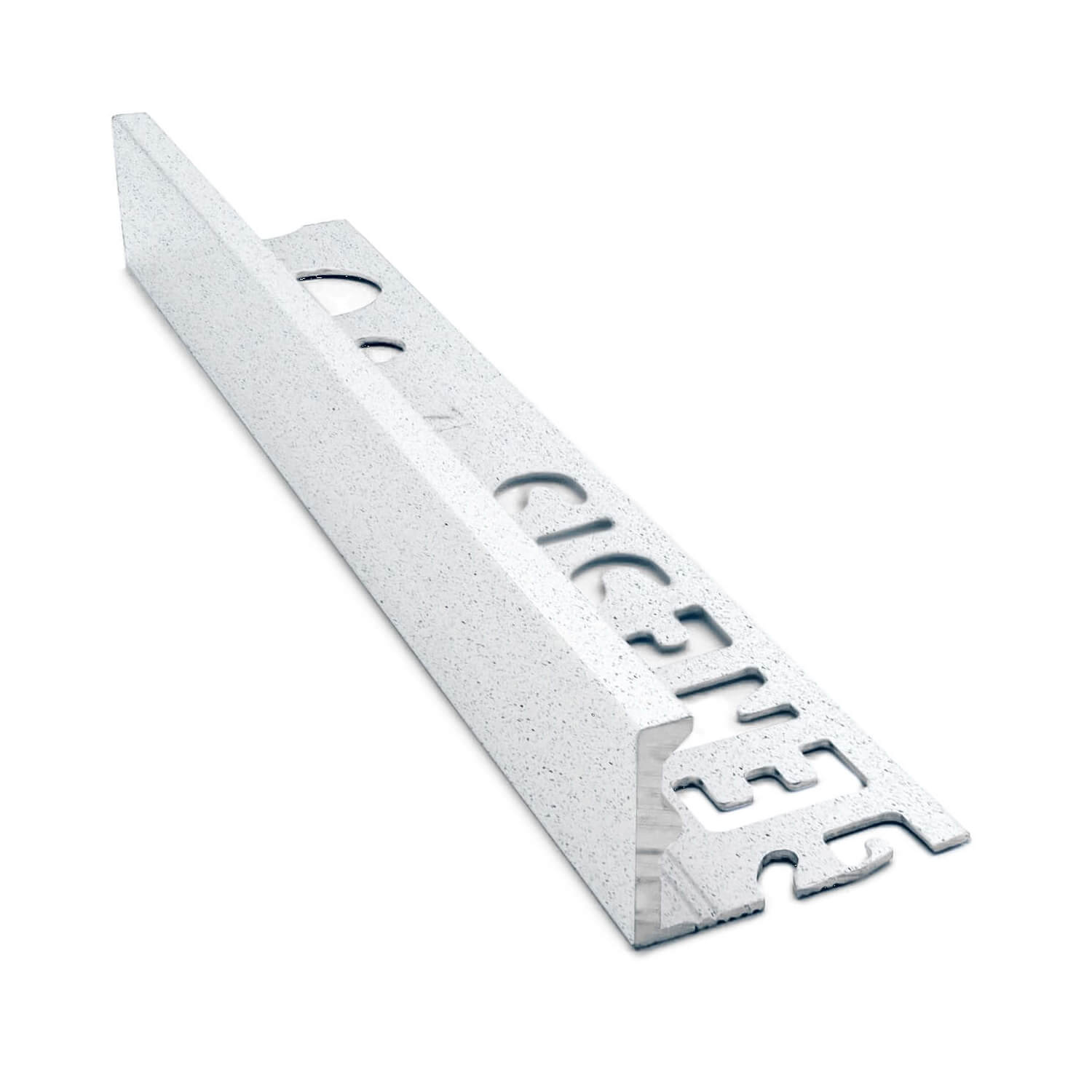

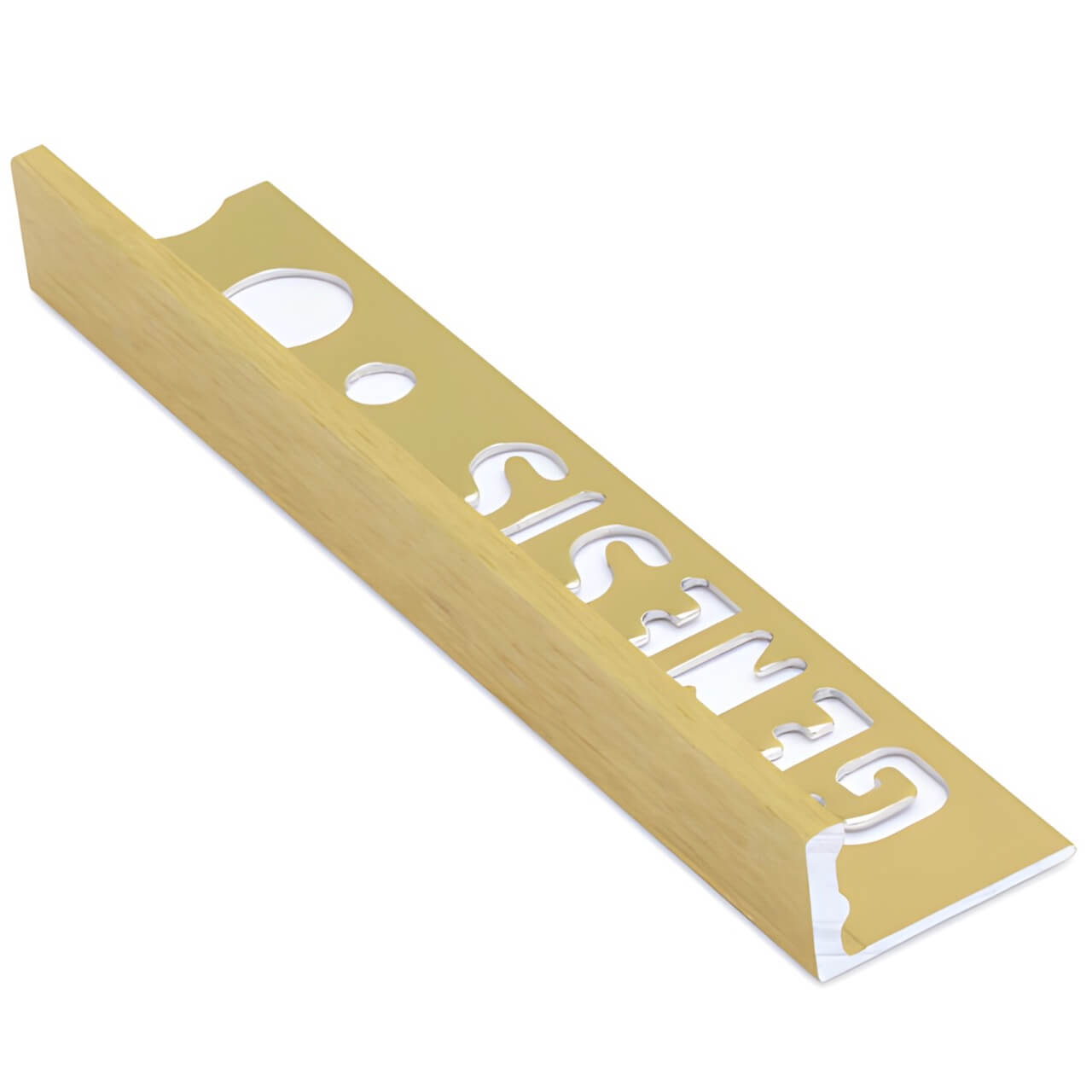

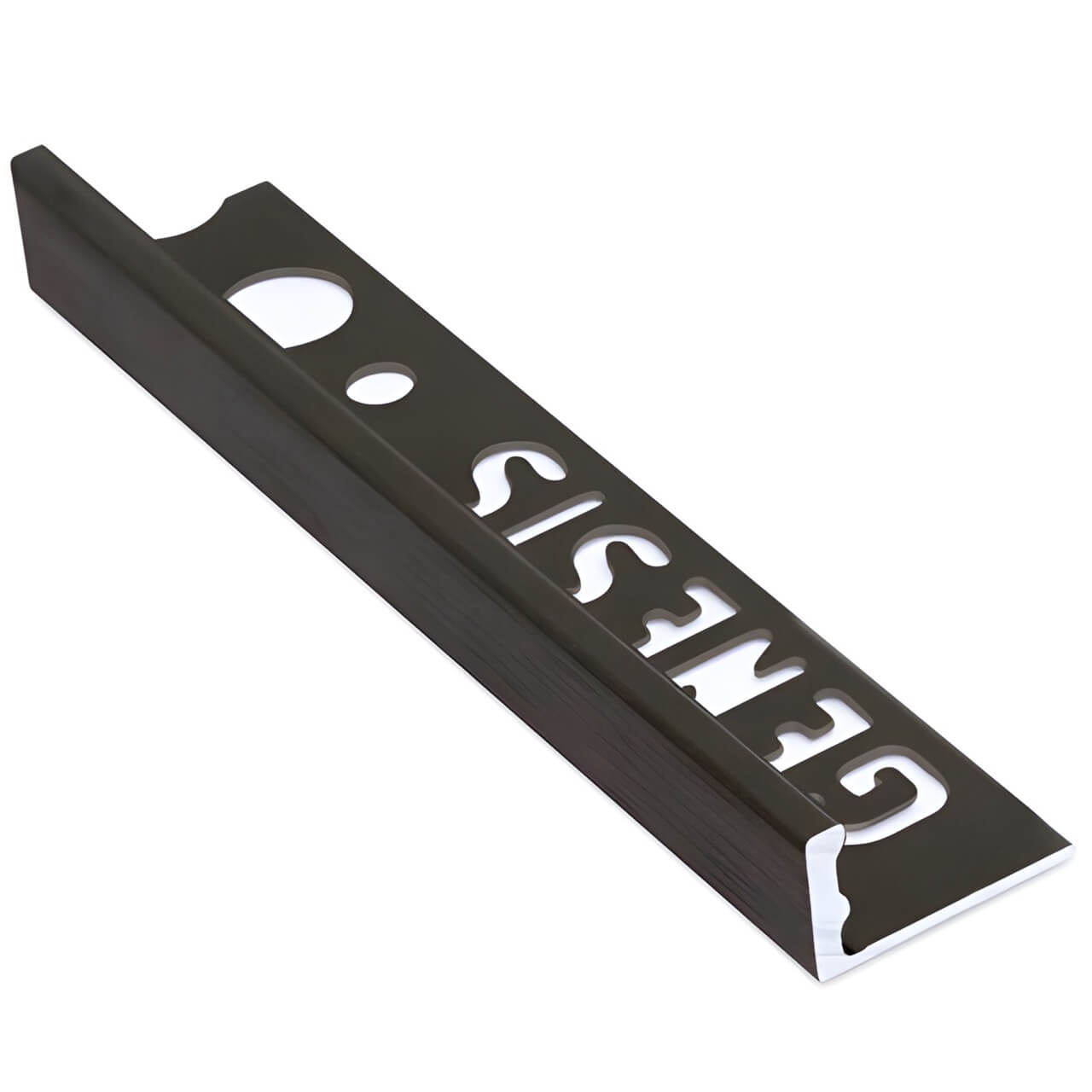

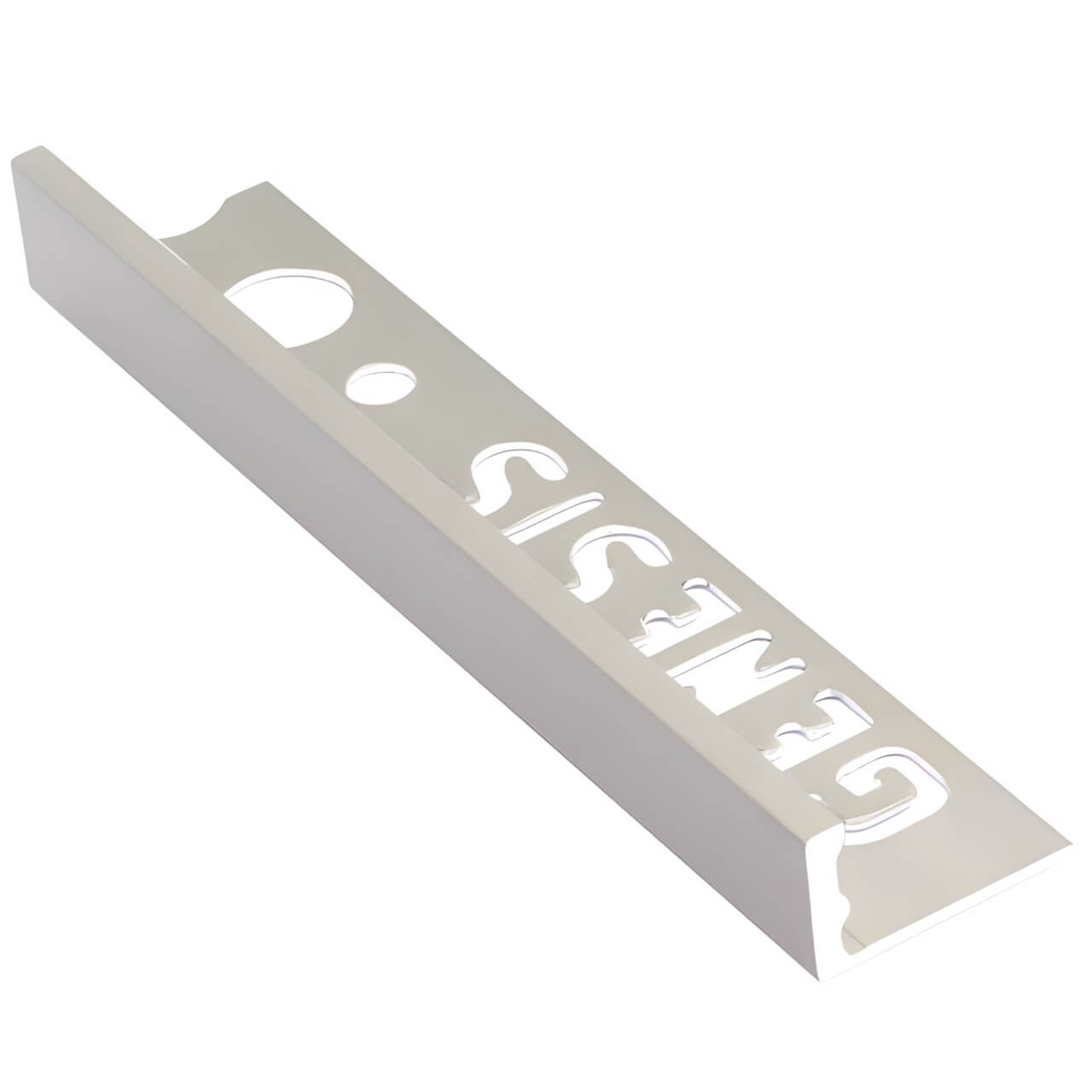

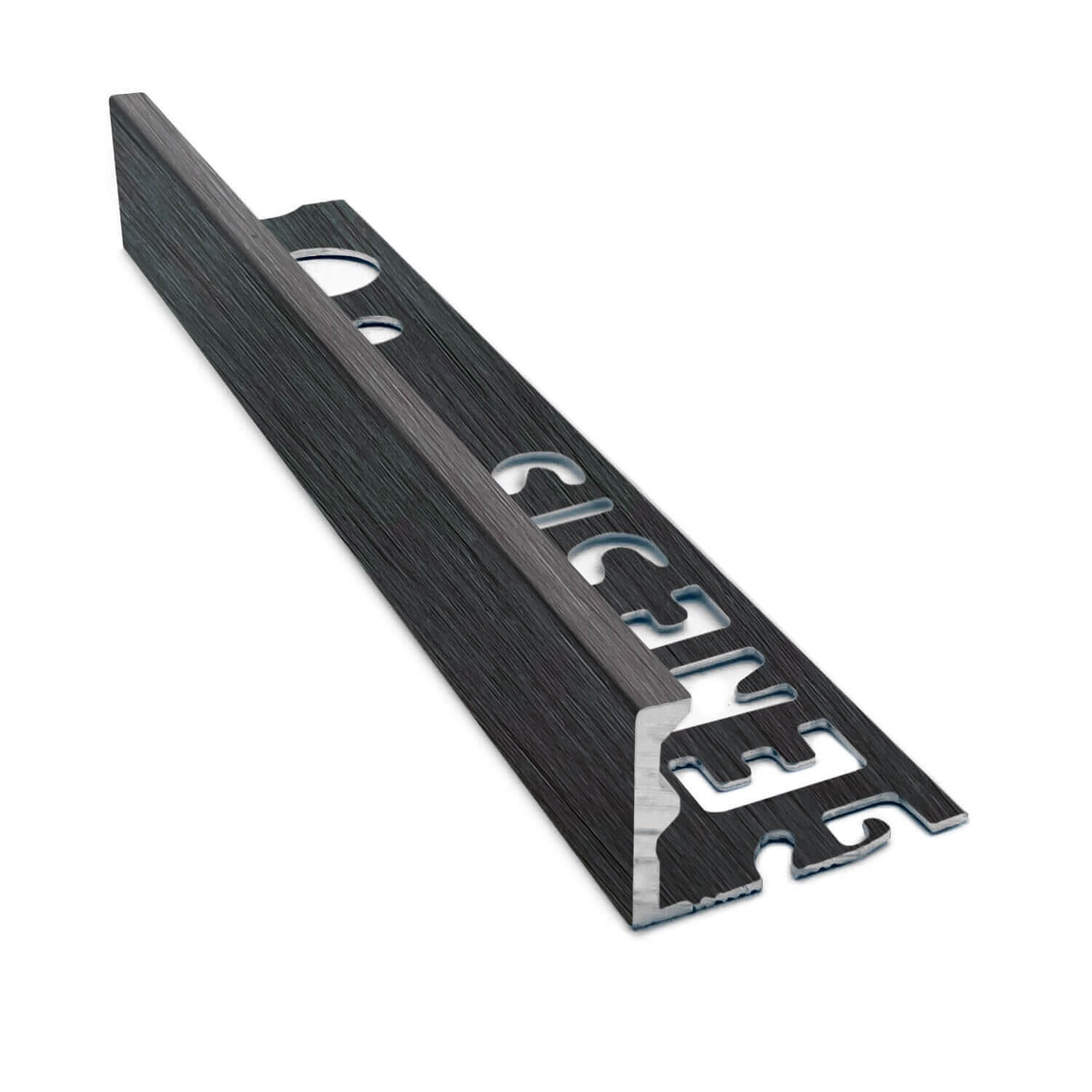

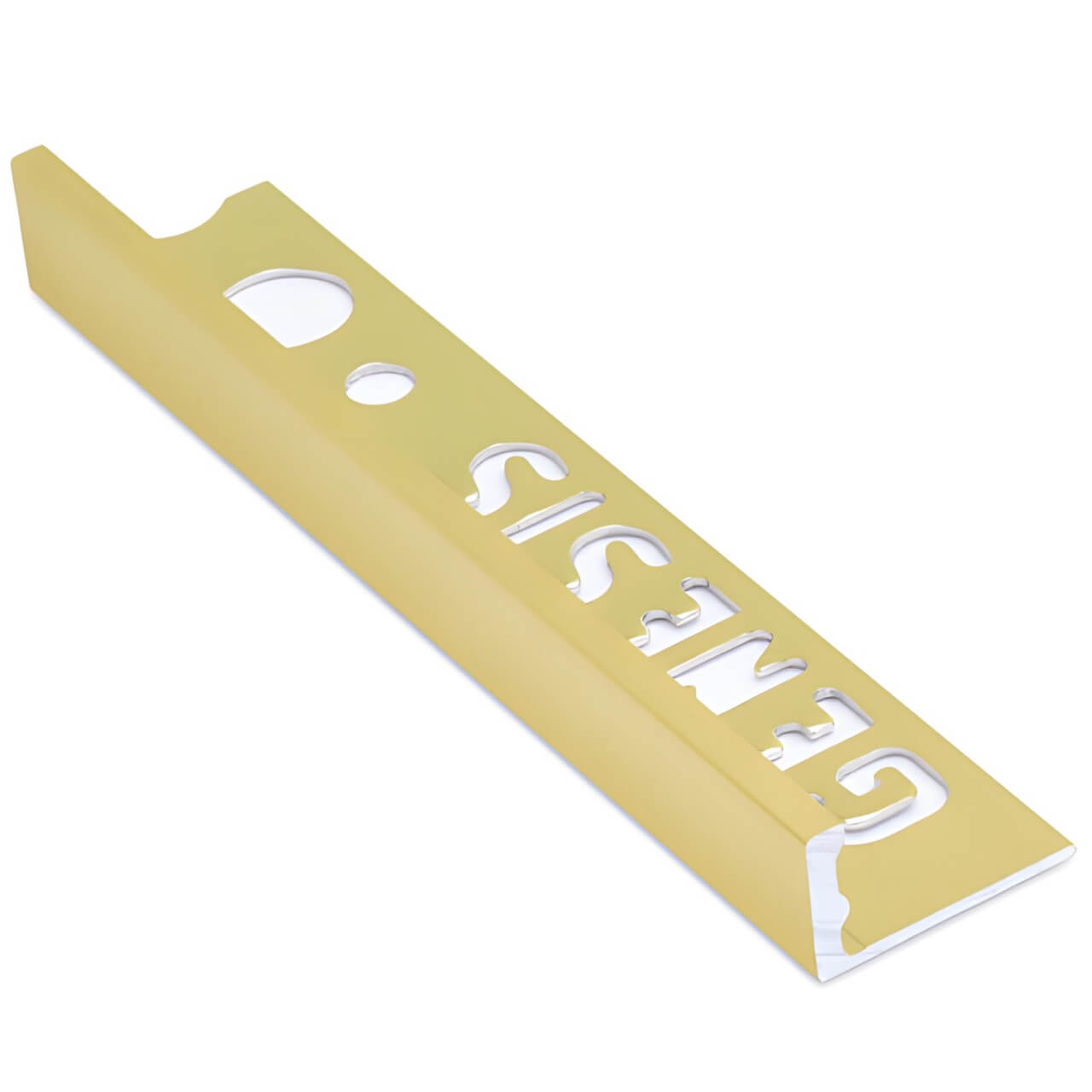

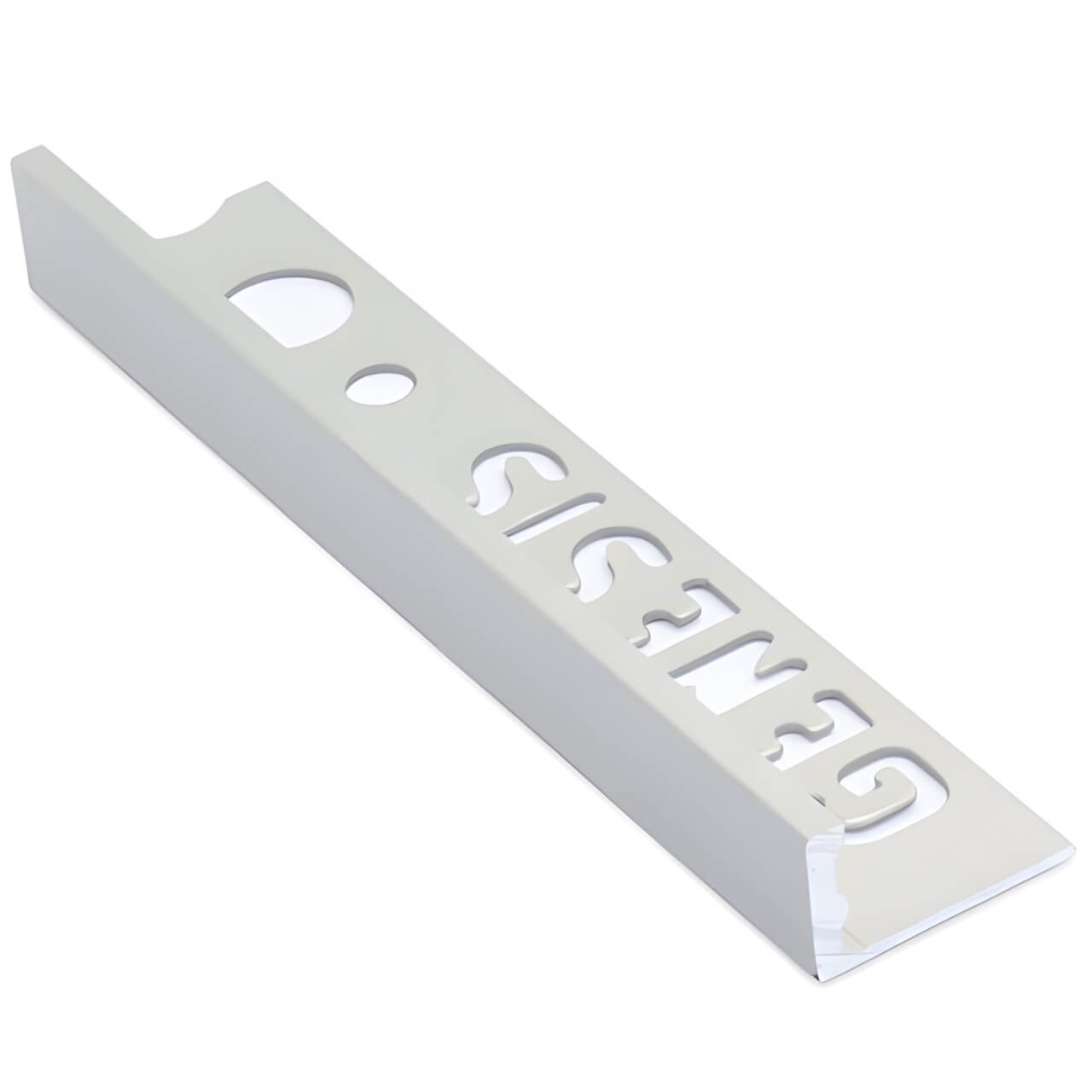

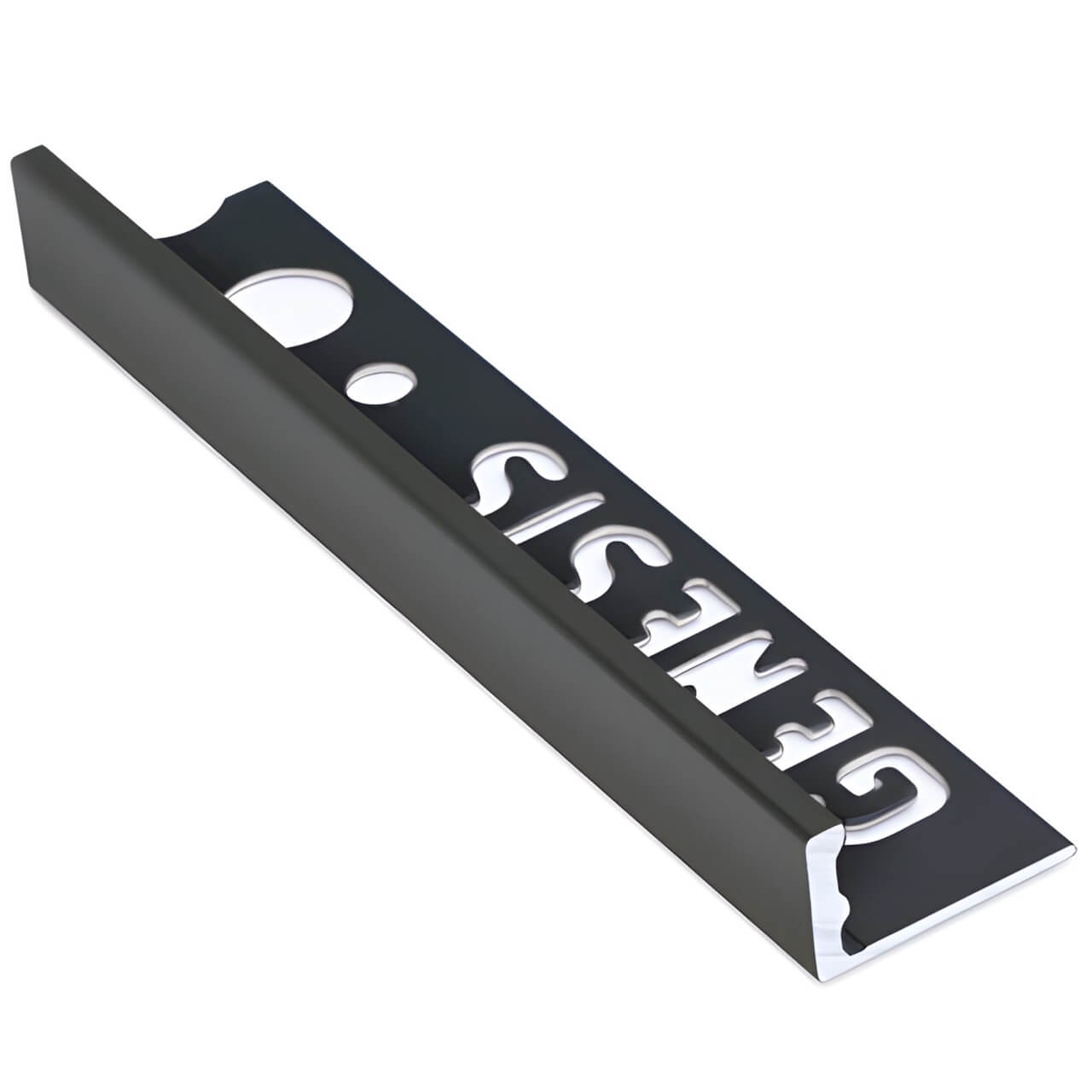

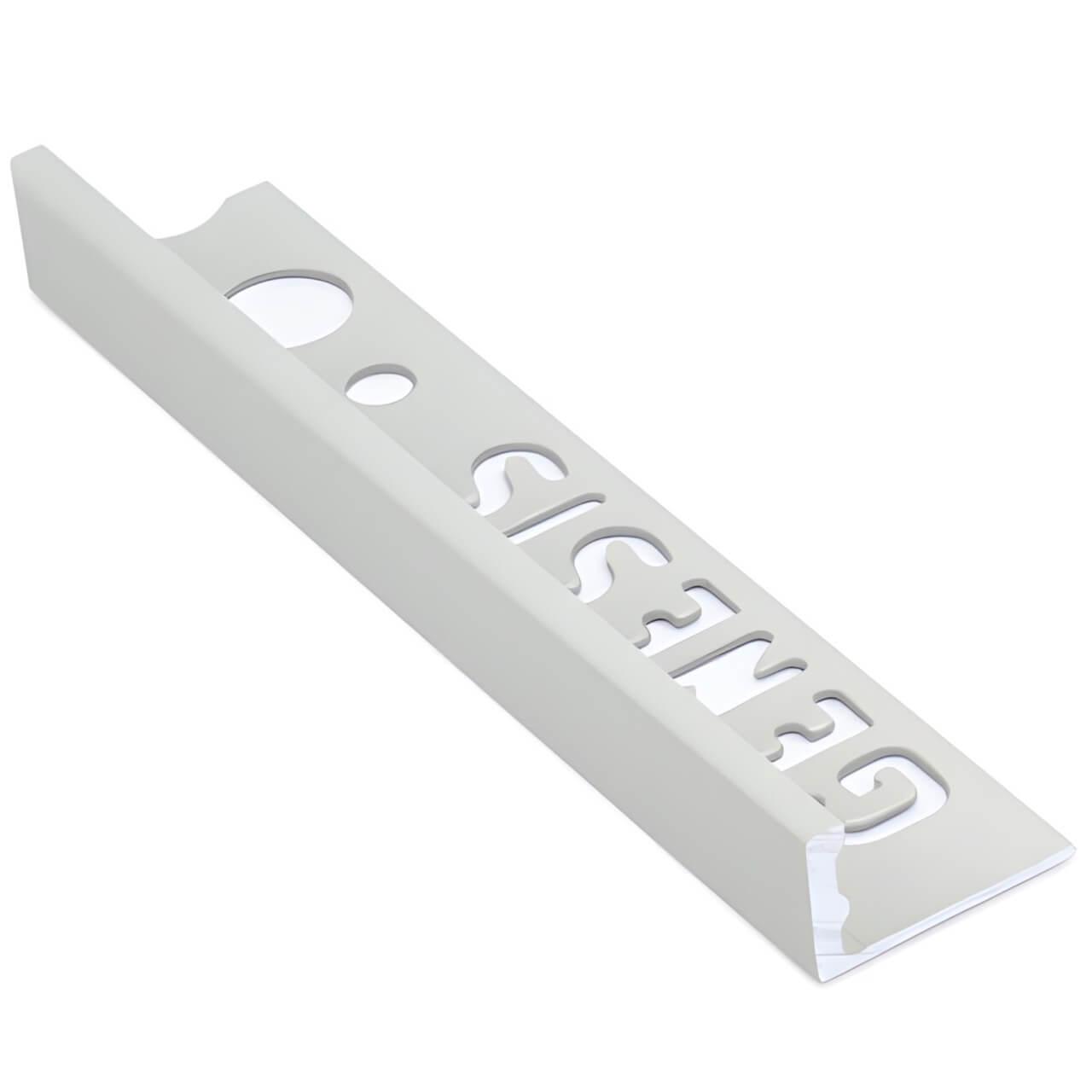

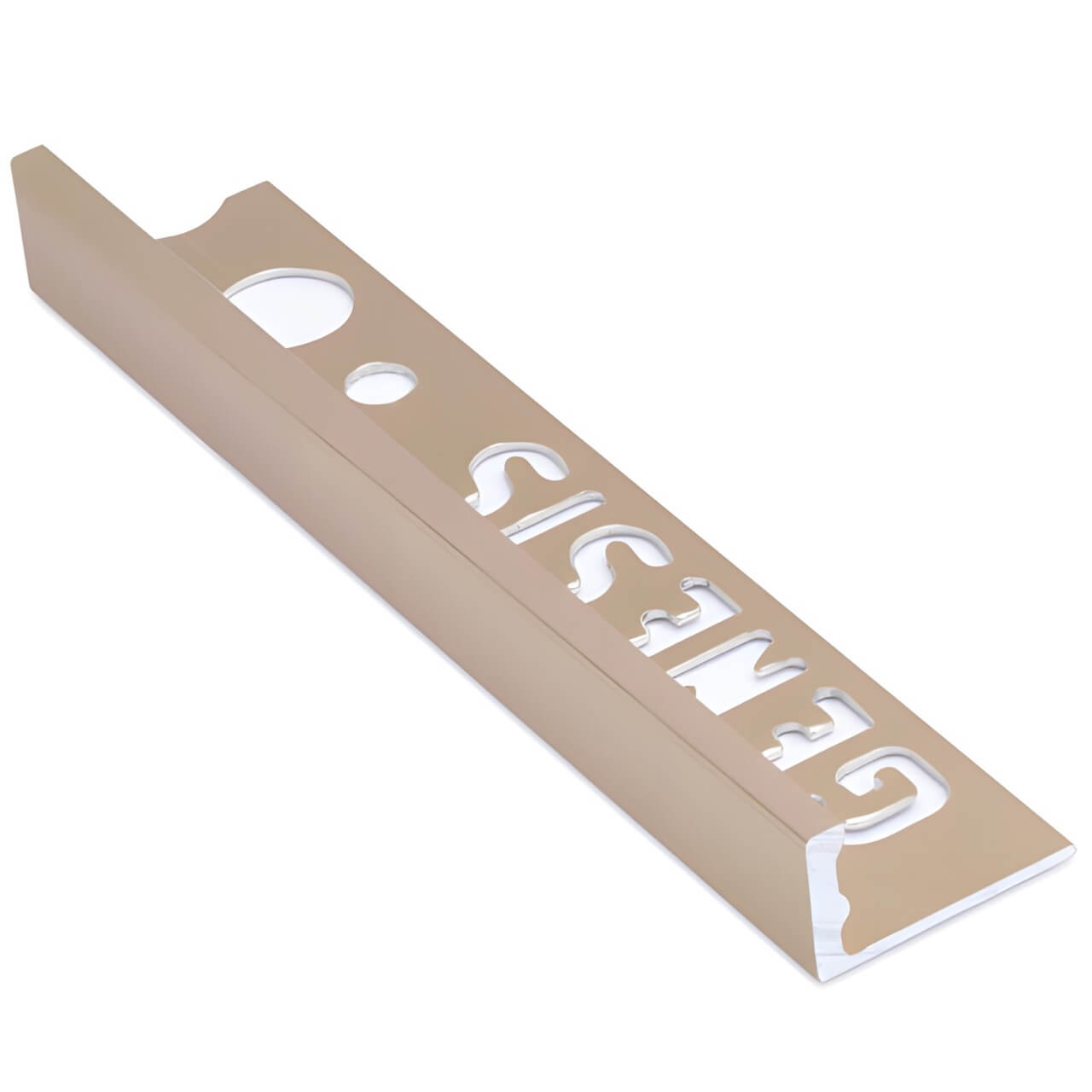

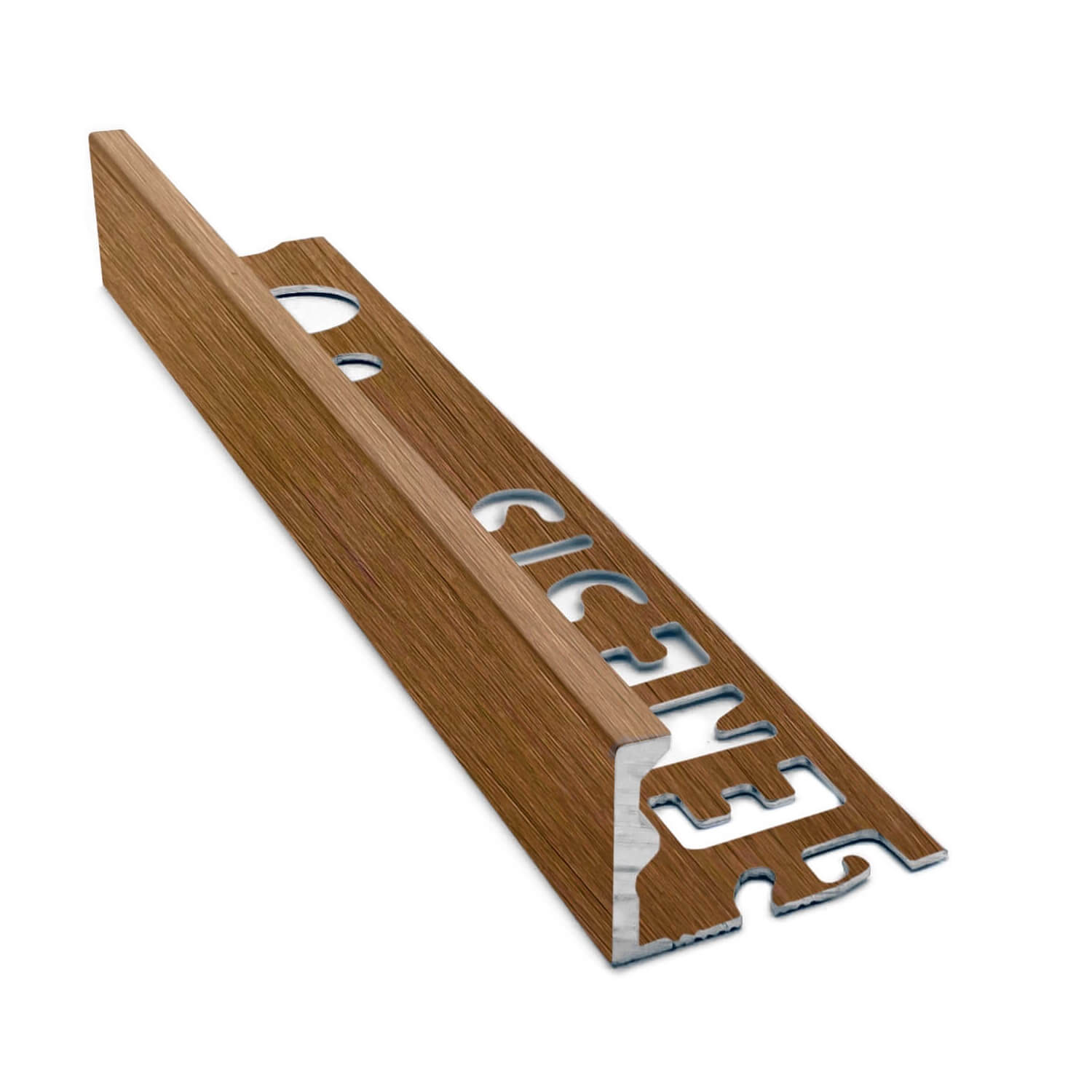

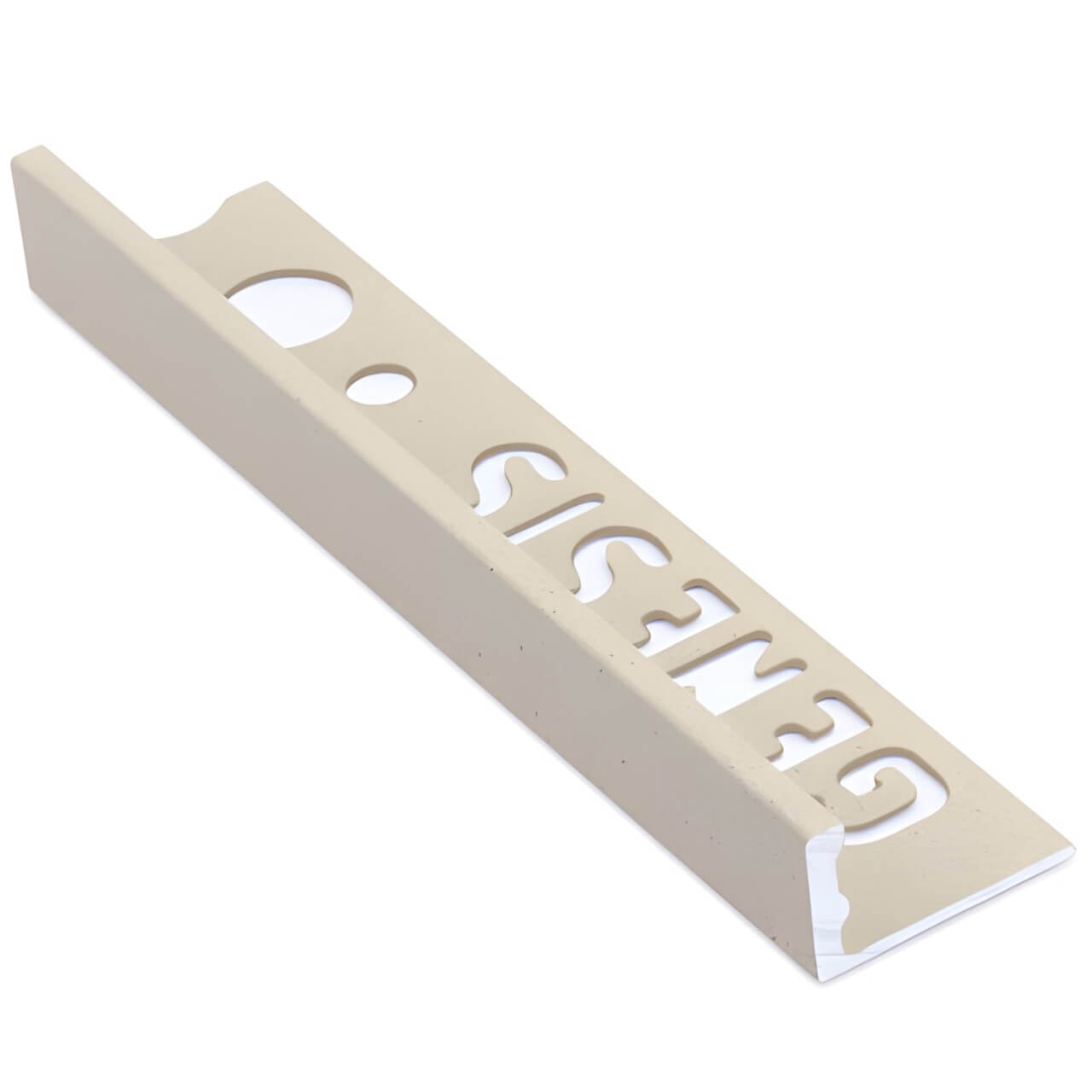

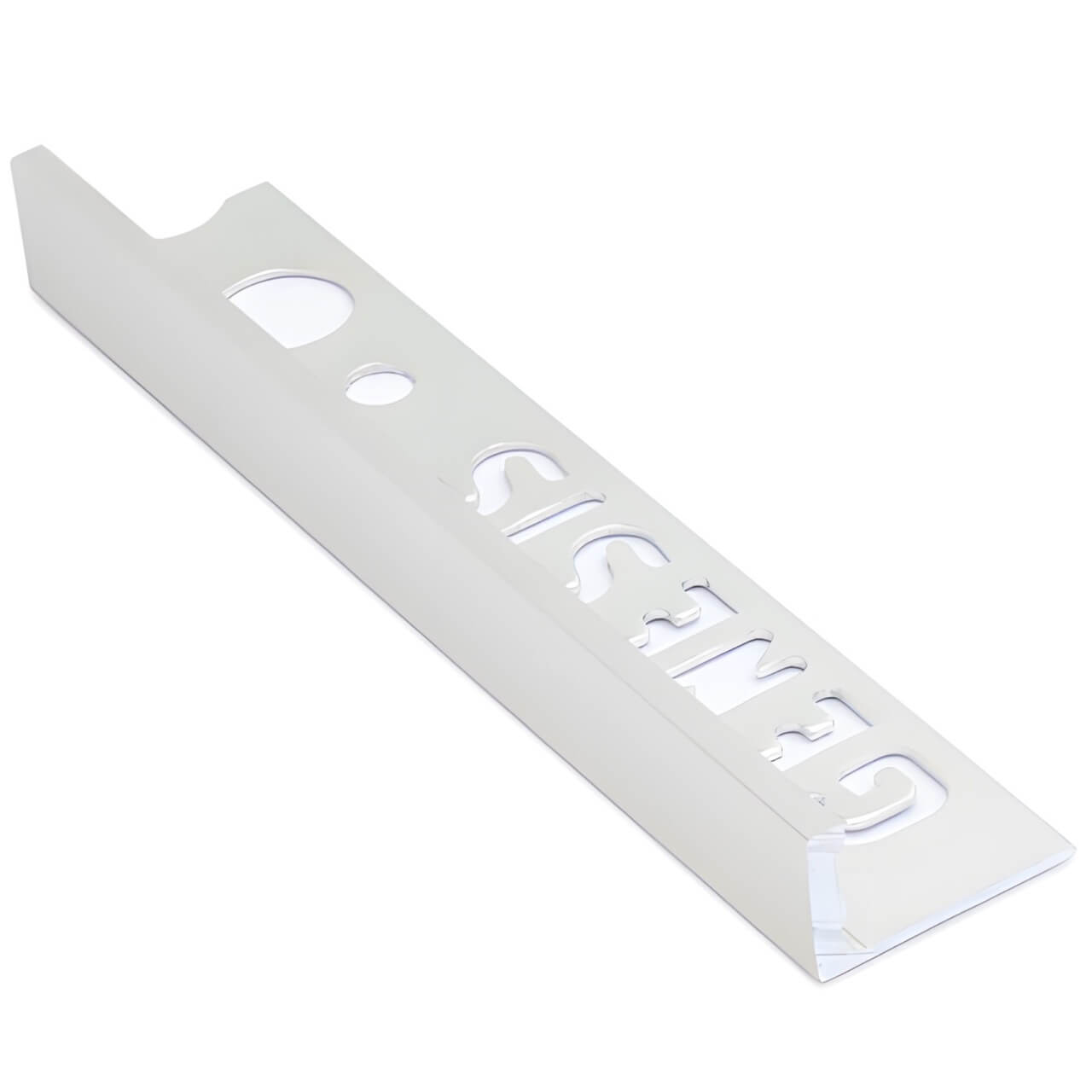

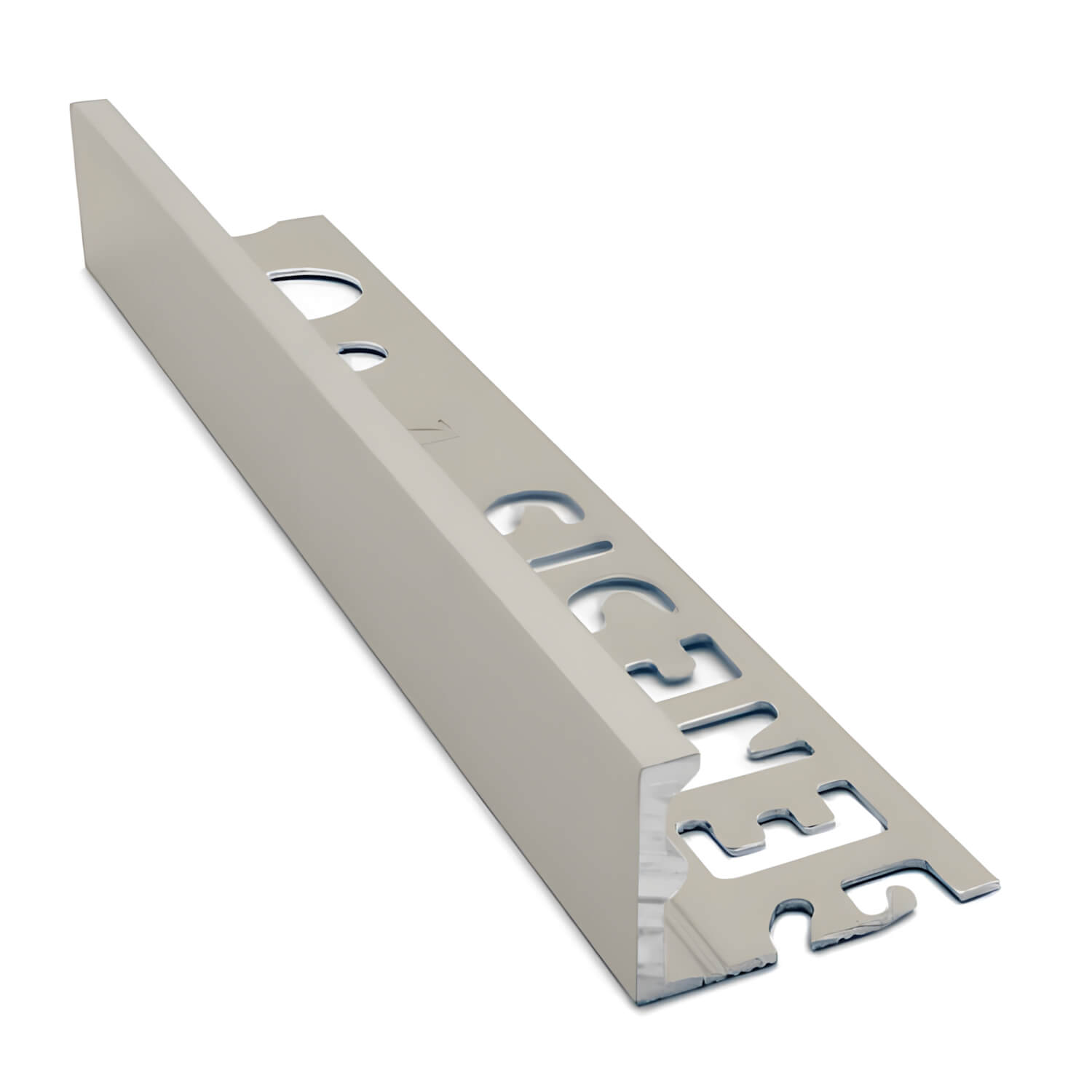

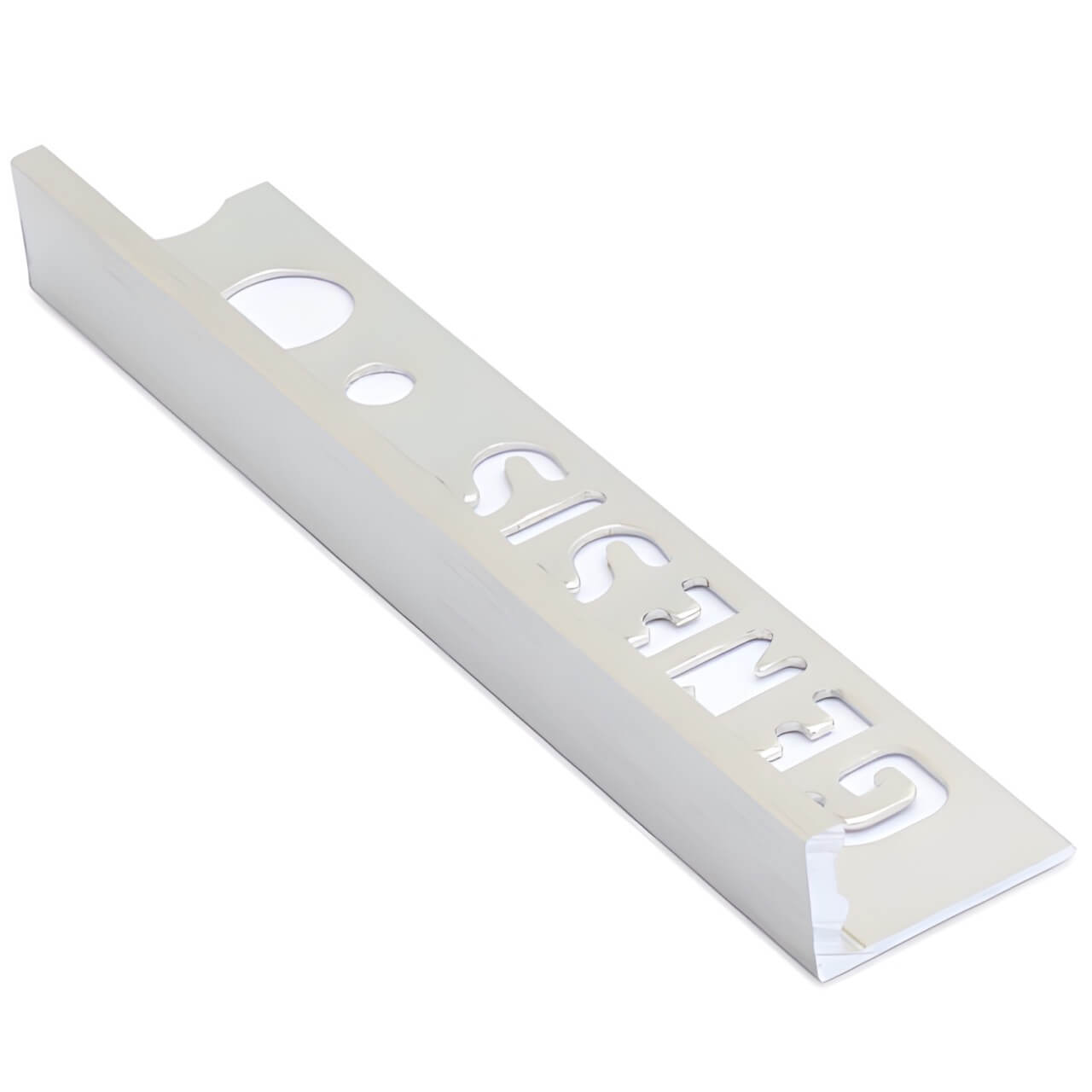

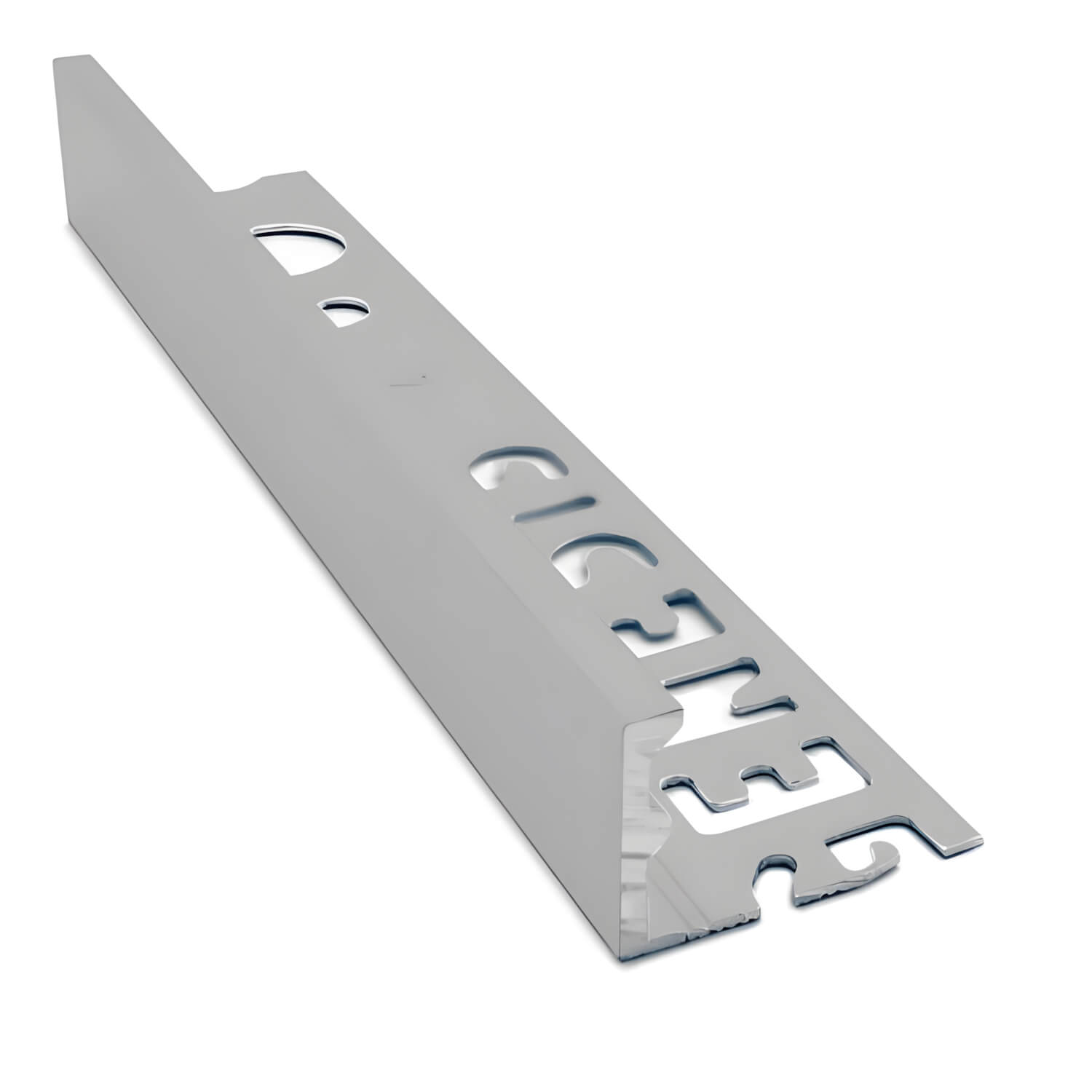

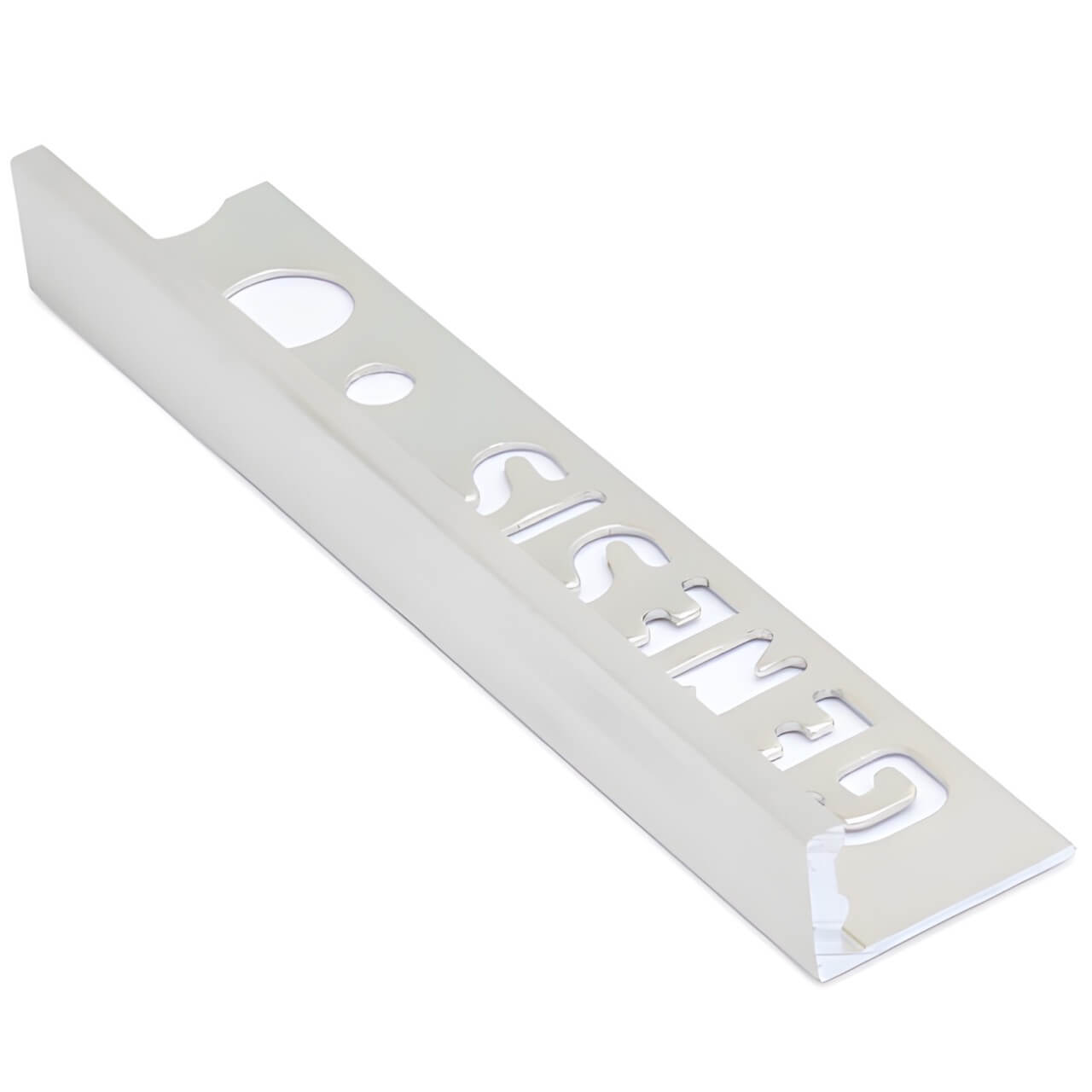

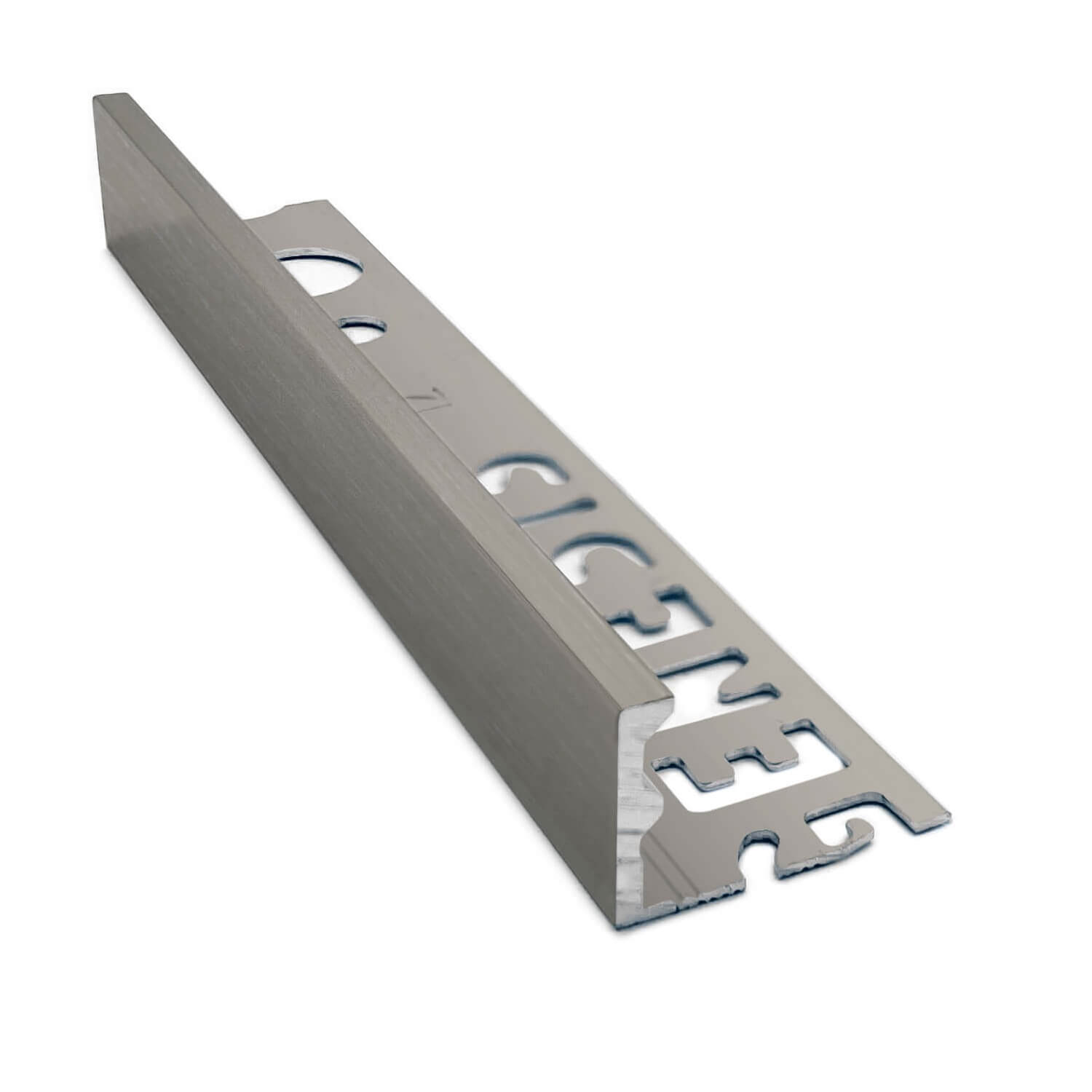

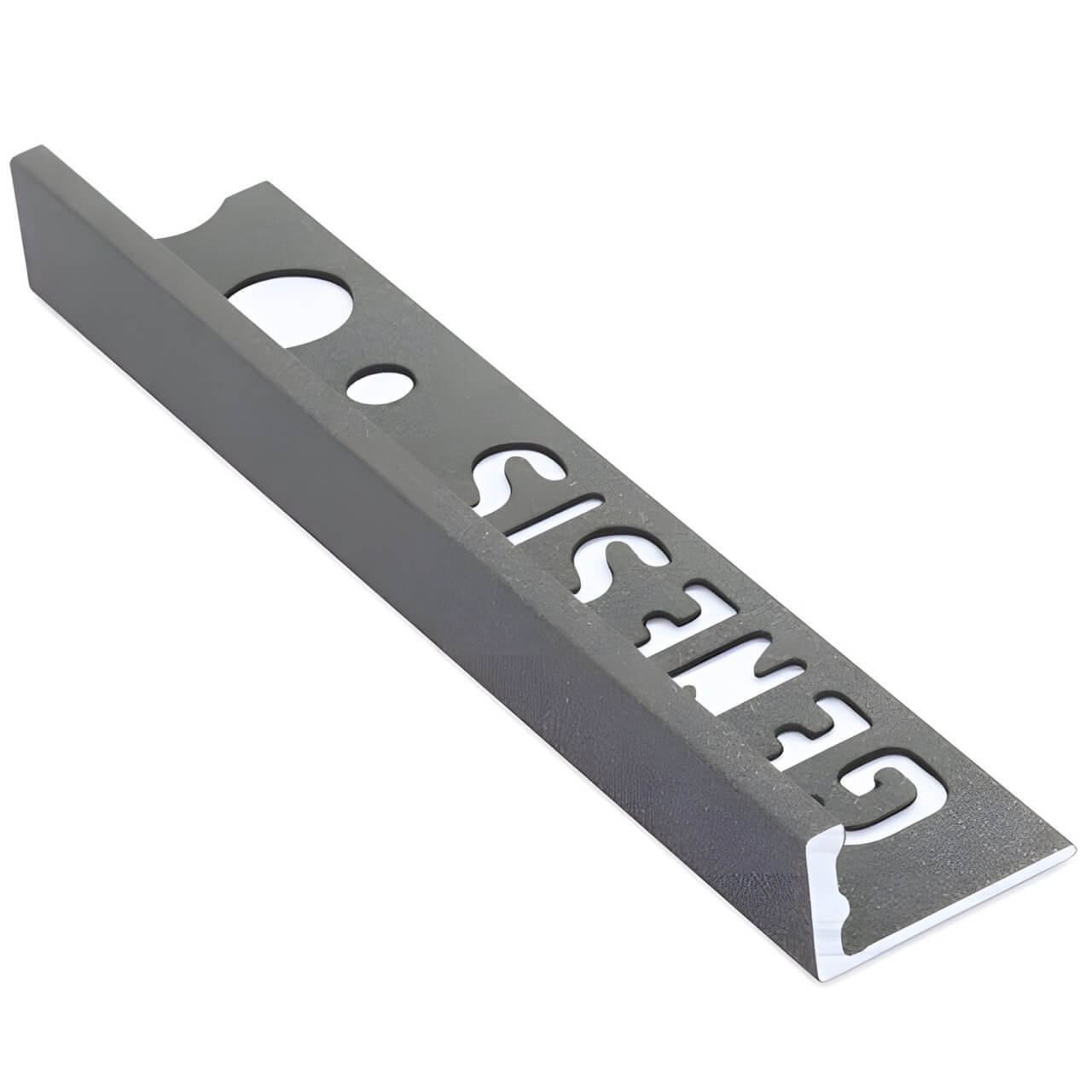

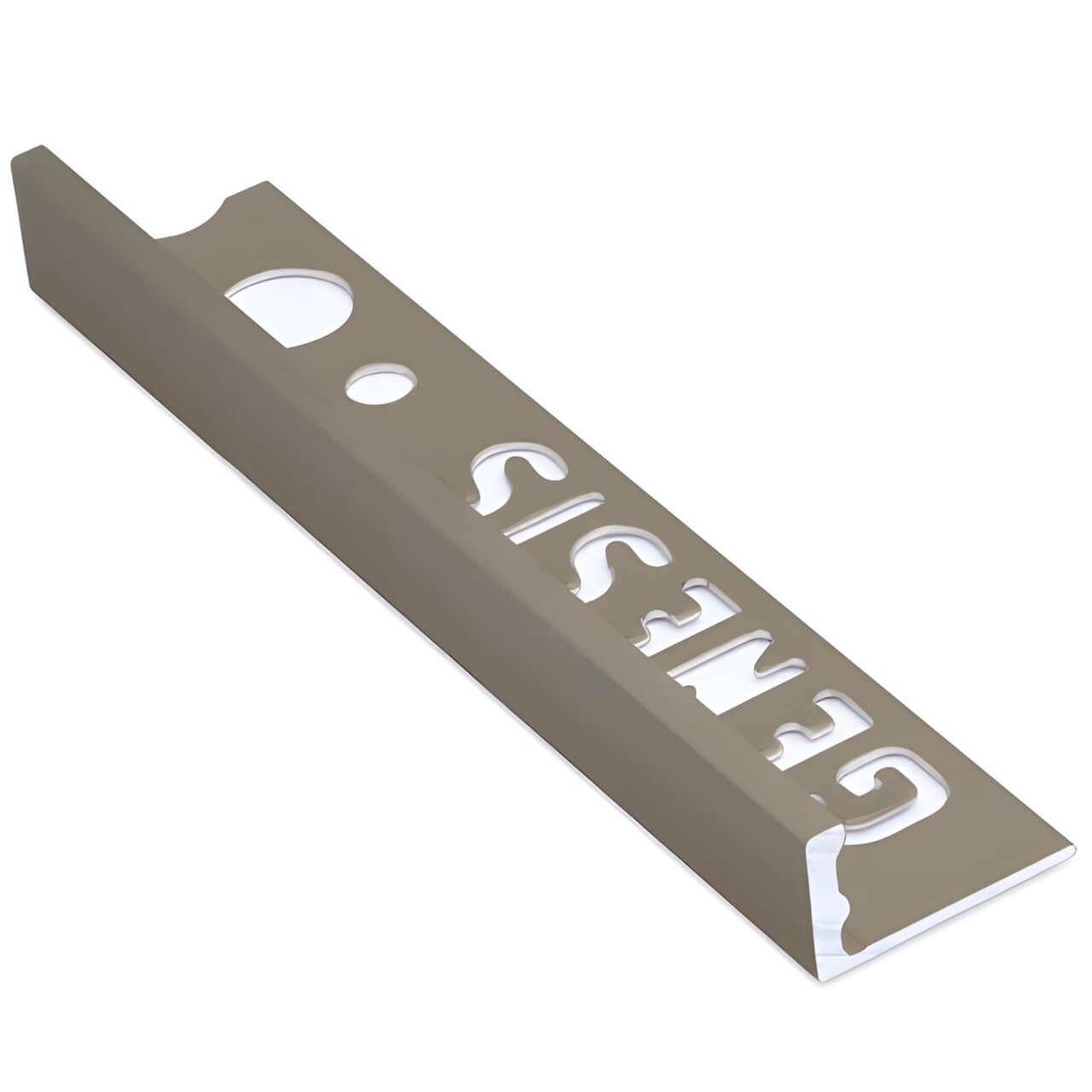

Genesis ESA Aluminium Straight Edge Tile Trim Square Edge Wall Floor Protector

Genesis

✓ In Stock

  • Square edge design for modern, clean tile finishes
  • Protects tile corners from damage and wear
  • Available in multiple depths up to 22.5mm
  • Aluminium construction with anodised or powder-coated finishes

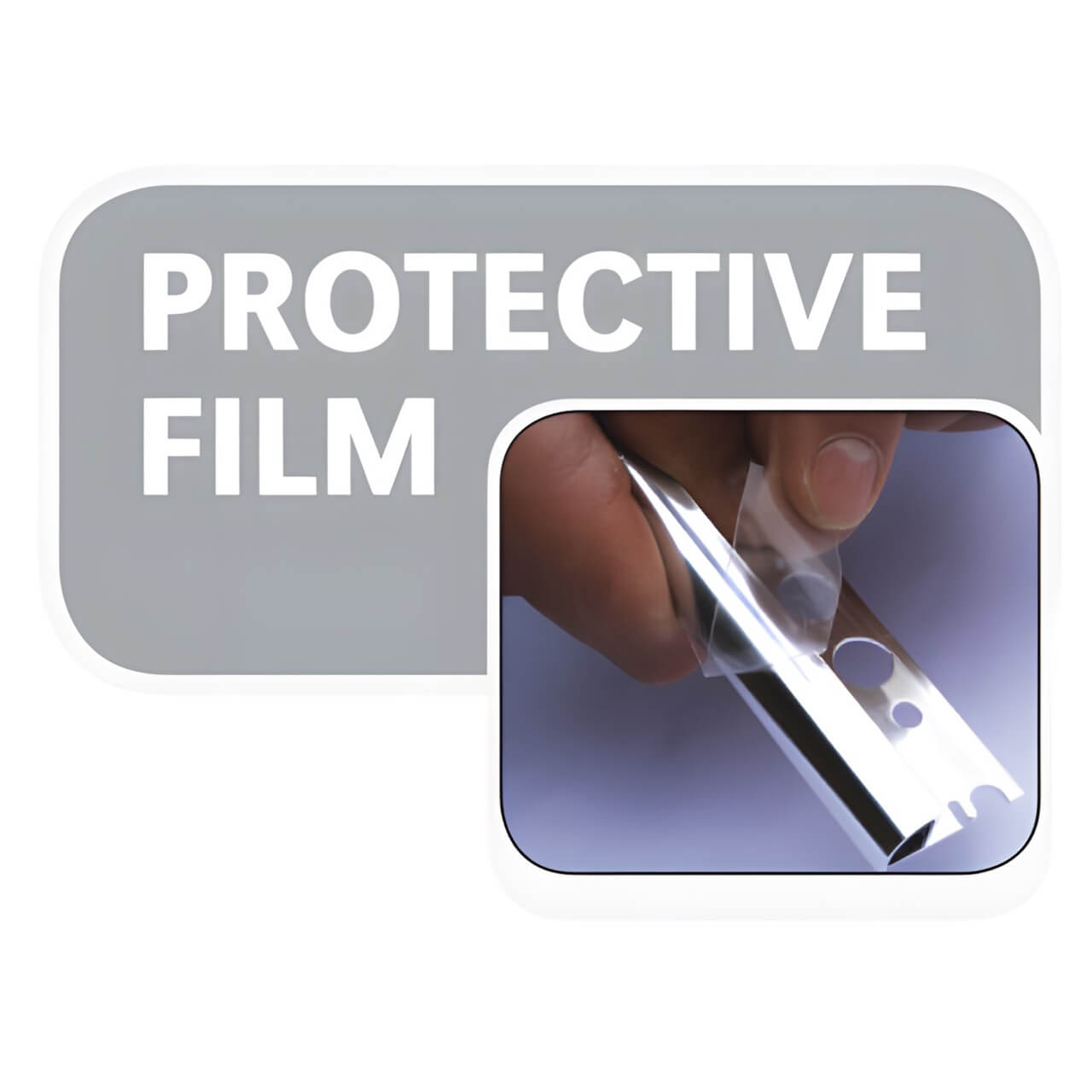

  • Supplied with protective film for safe transport and installation
  • Next Day Delivery Available
  • FREE 2-4 Day Click and Collect
Profile TypeEdging Strip
Qty per Pack / Box1
MaterialAluminium
Suitable for Floor TypeTile

Price range: £5.95 through £20.95 inc. VAT

ex. VAT £4.96-£17.46
14 Days easy returnEncrypted secure checkoutSatisfactory guaranteed
  • Pay by Invoice

ESA Aluminium Straight Edge Profile is designed to protect and finish the edges of ceramic tiles, porcelain, and other hard floor and wall coverings. Its defined square edge provides a clean, modern outline – ideal for rectified porcelain stoneware installations. This profile avoids unsightly and fragile 45º cuts, delivering both a practical and aesthetic solution.

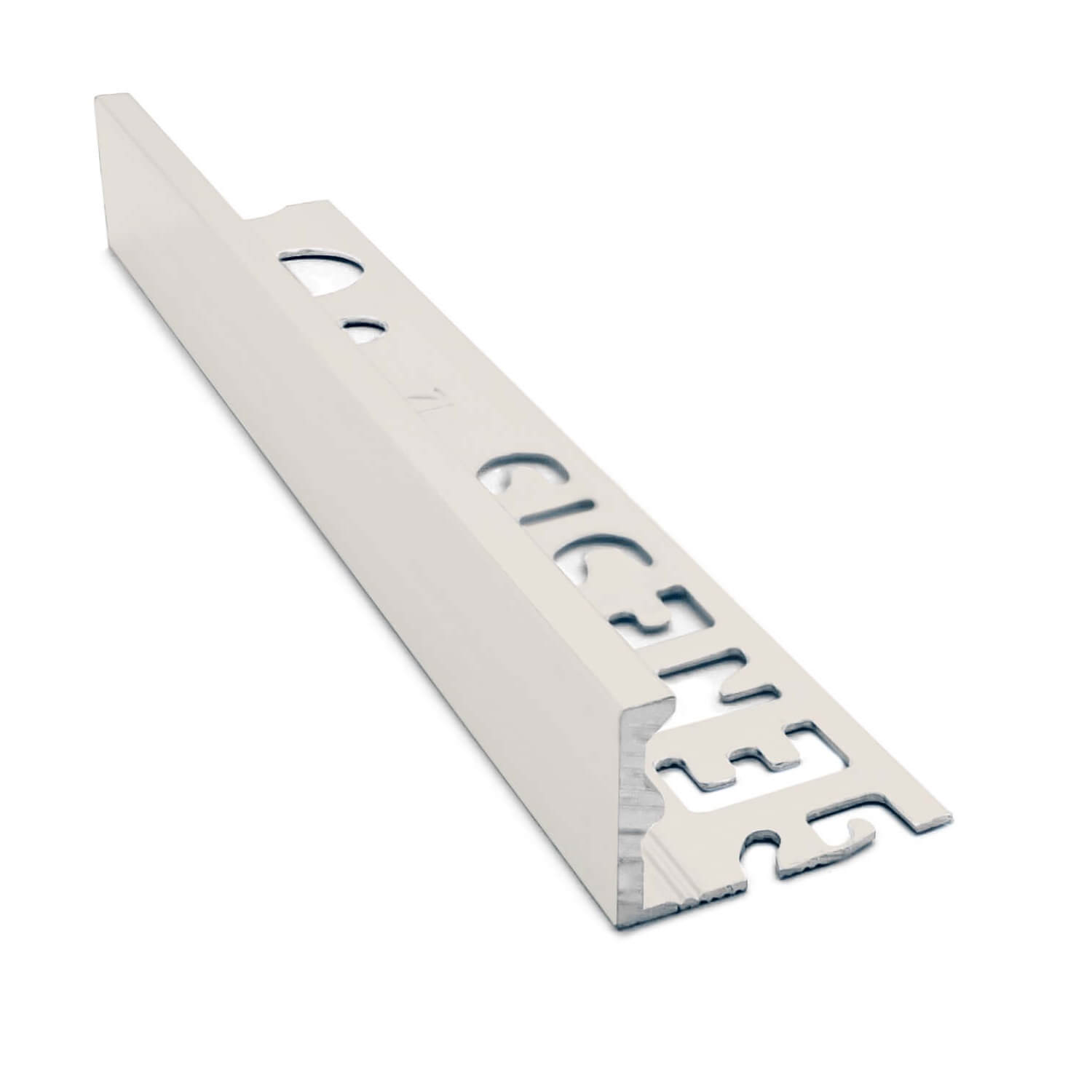

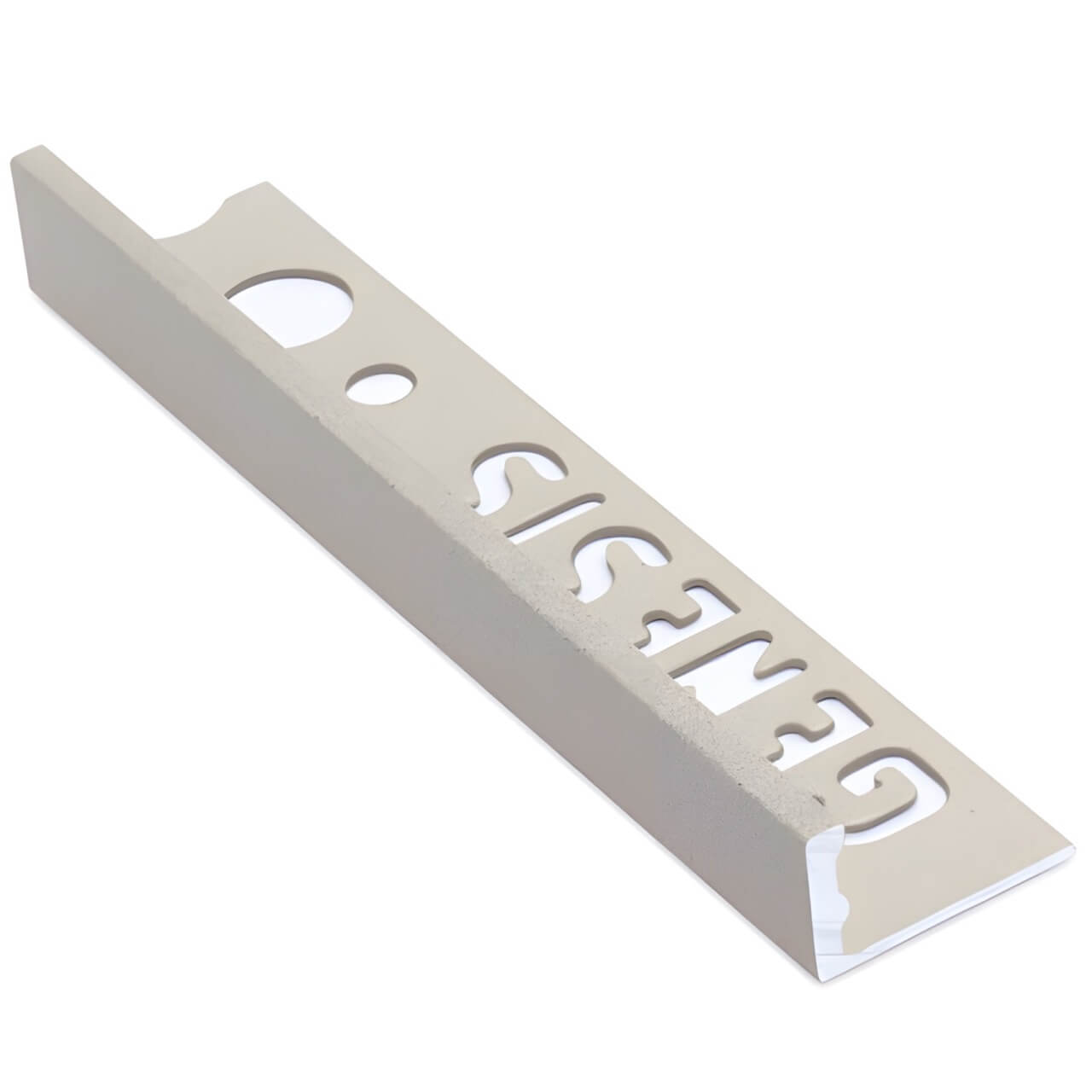

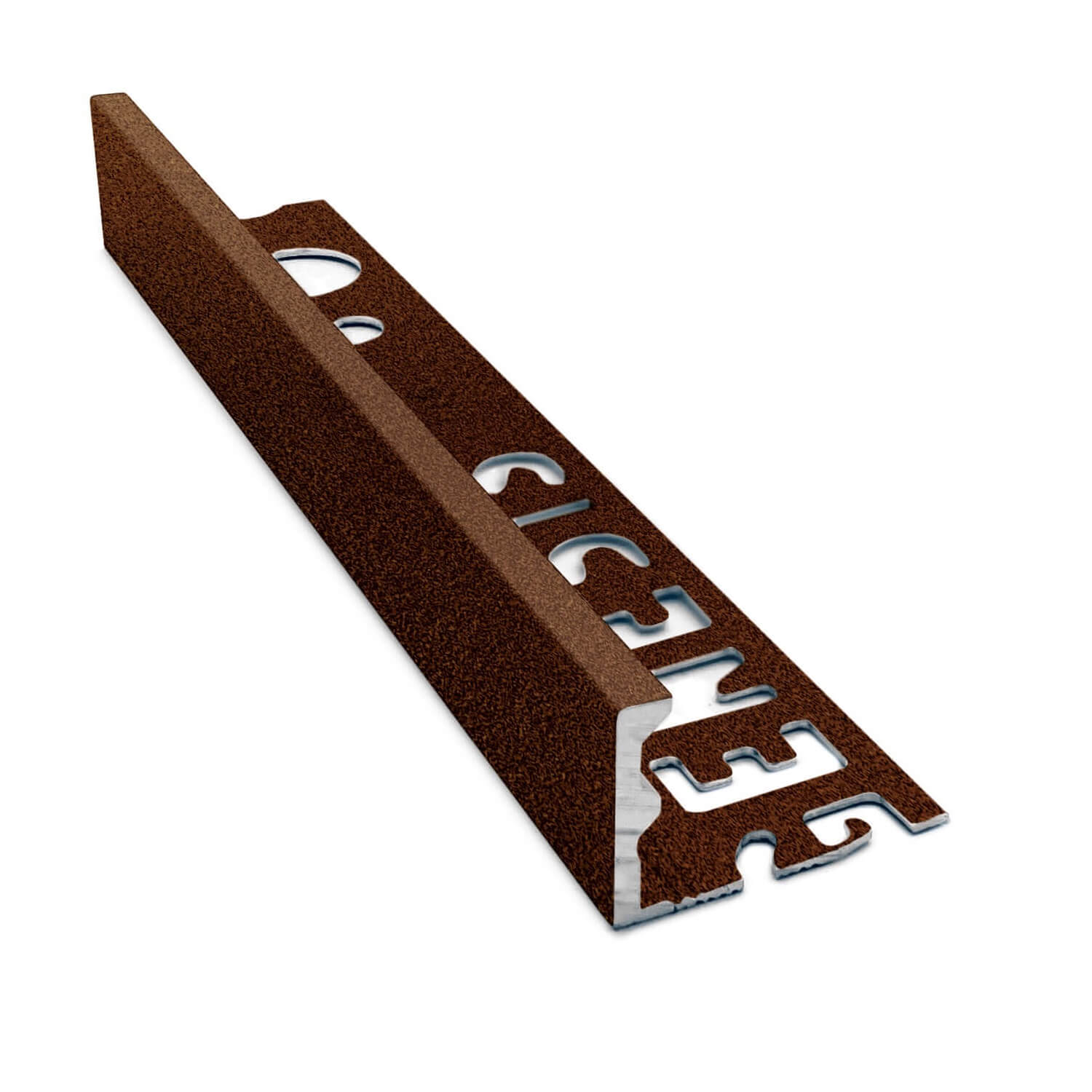

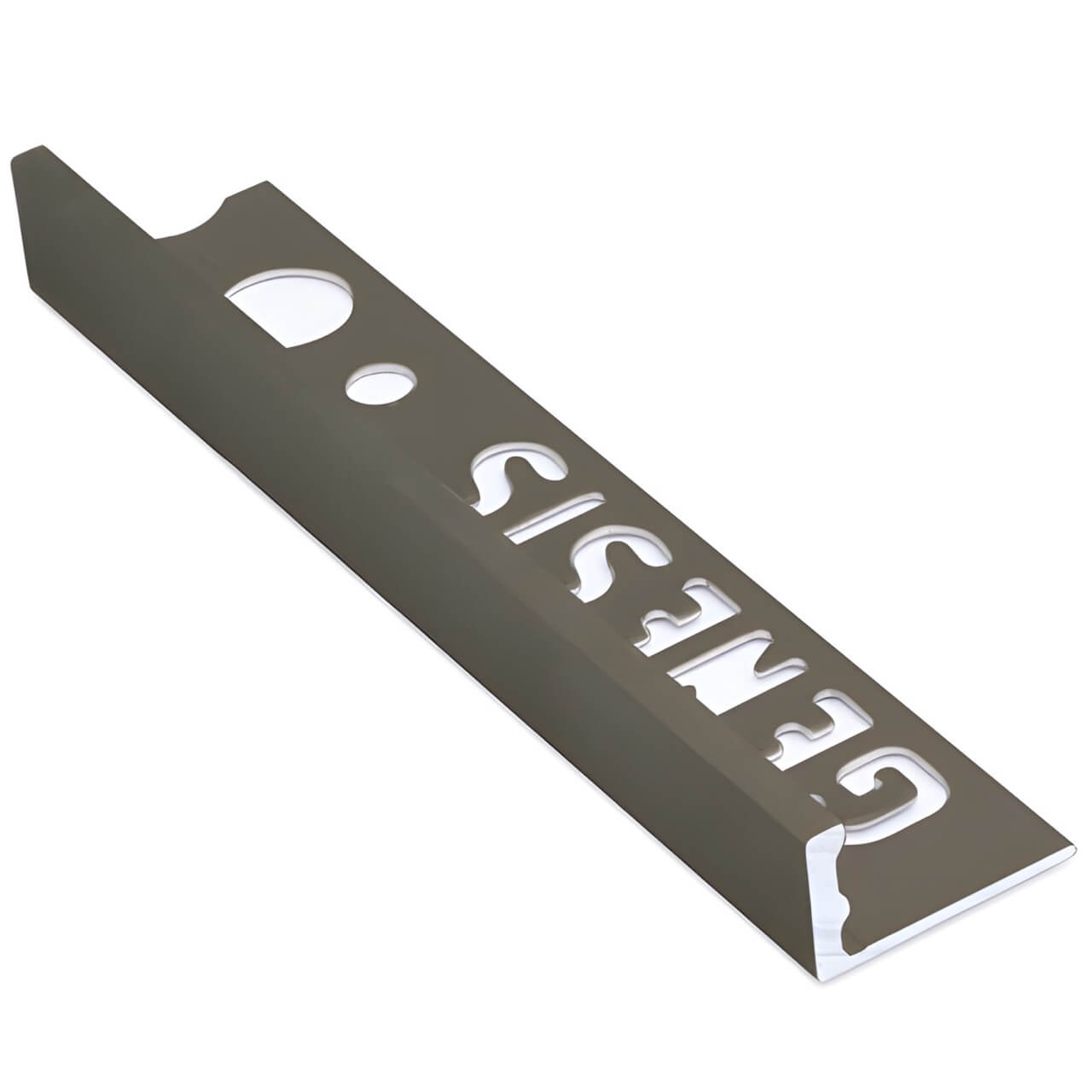

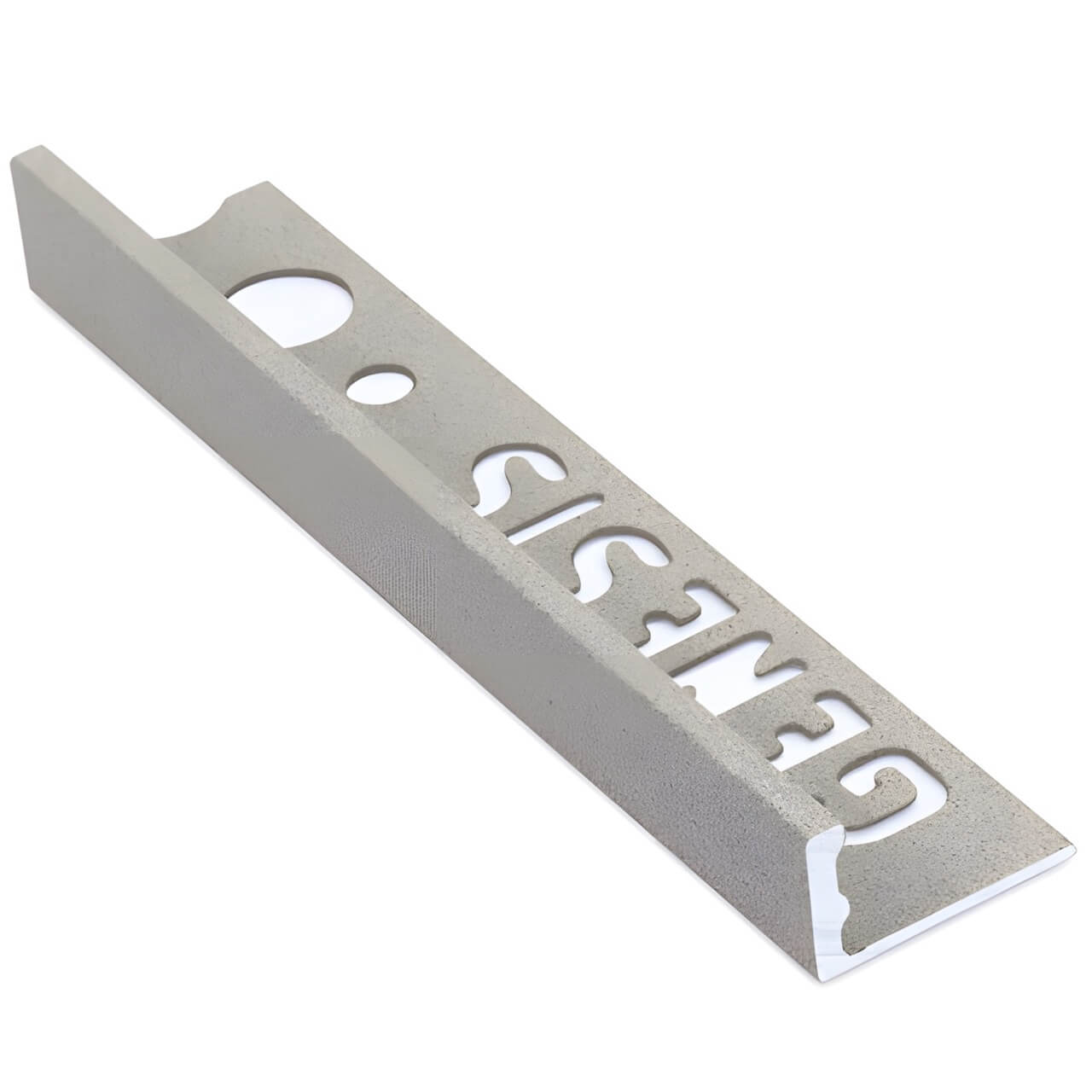

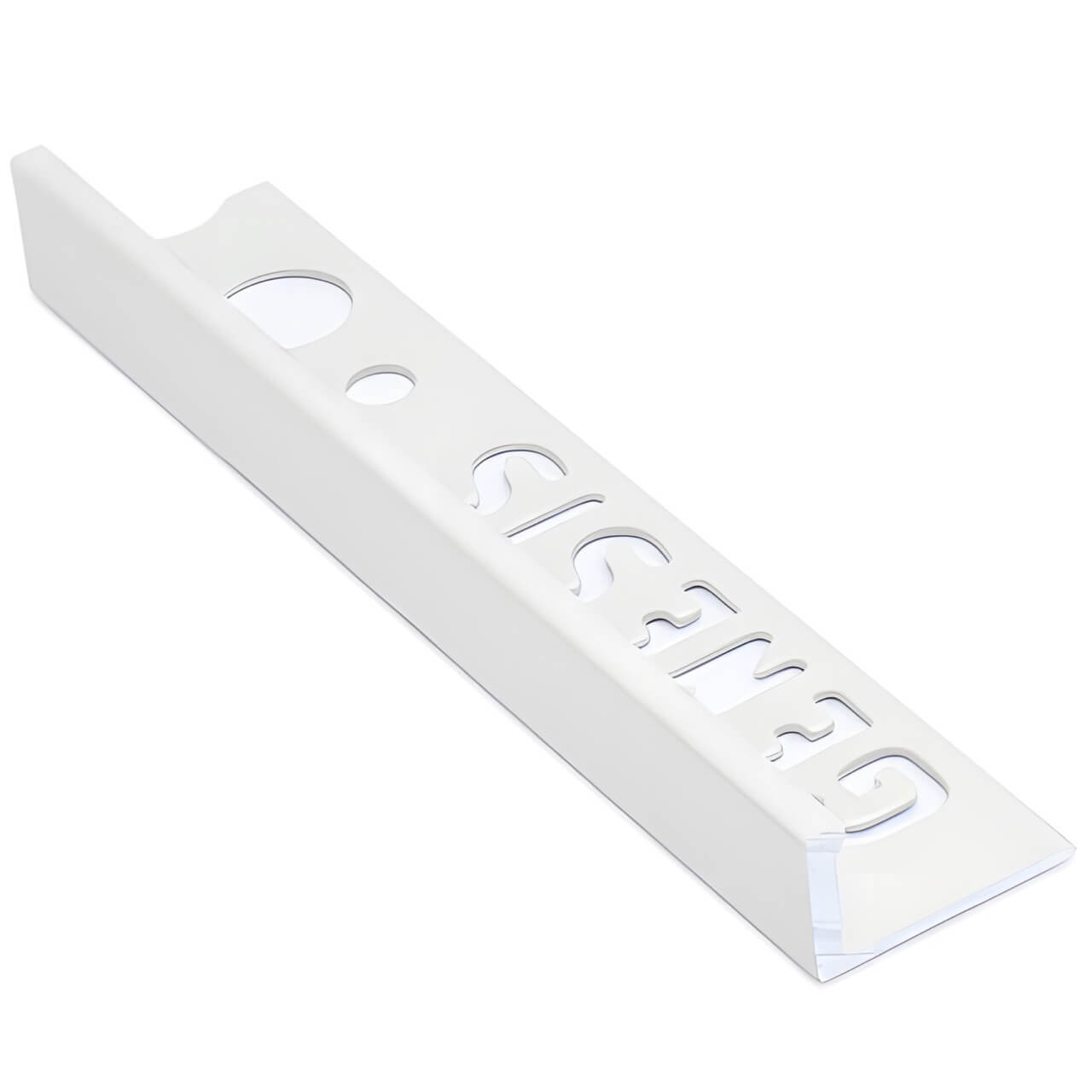

Available in a wide choice of colours and finishes, the ESA range ensures versatility for both wall and floor applications. Supplied with transparent protective film, trims are safeguarded during transport, storage, and installation. Bespoke powder coating to any RAL colour is available on request, offering complete design flexibility.

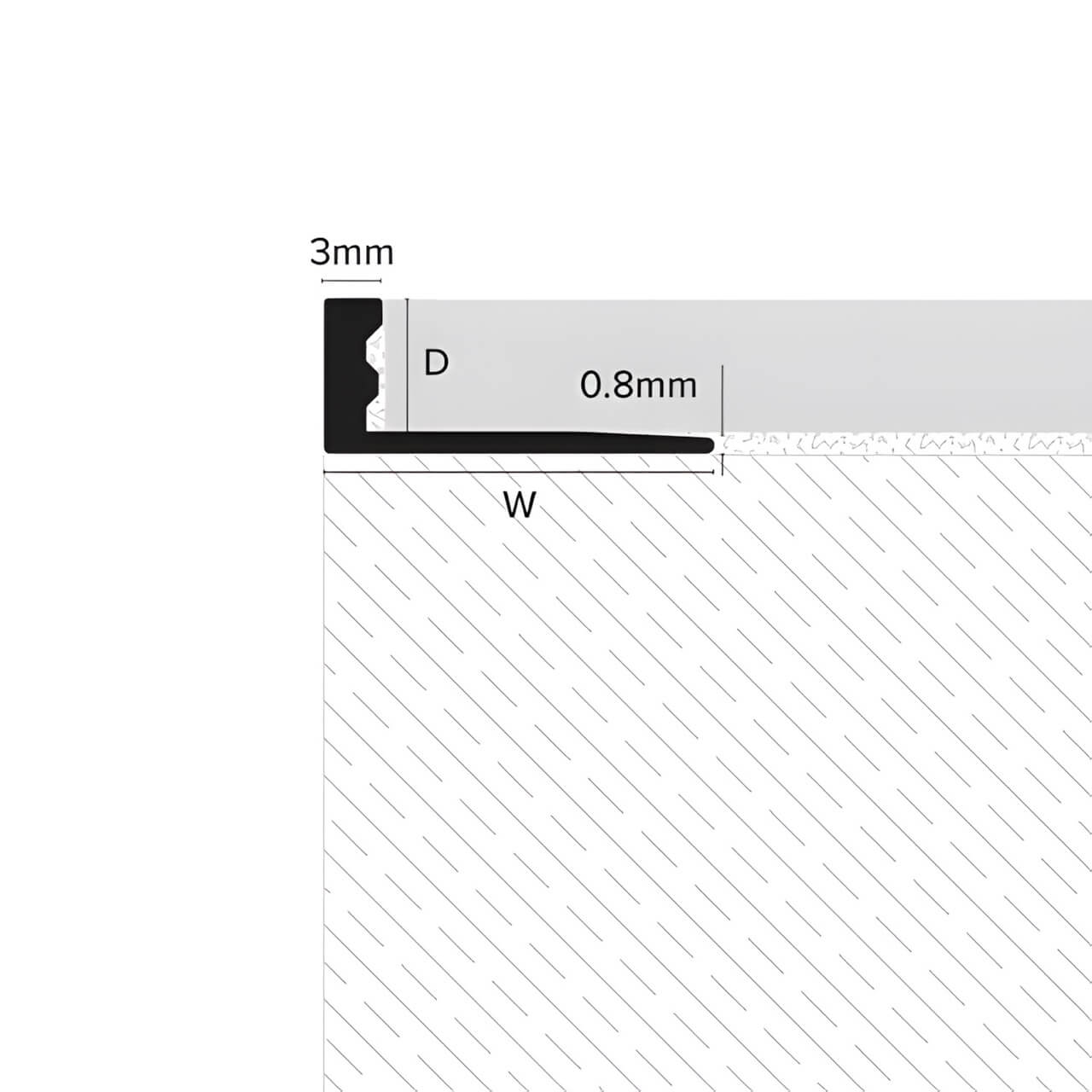

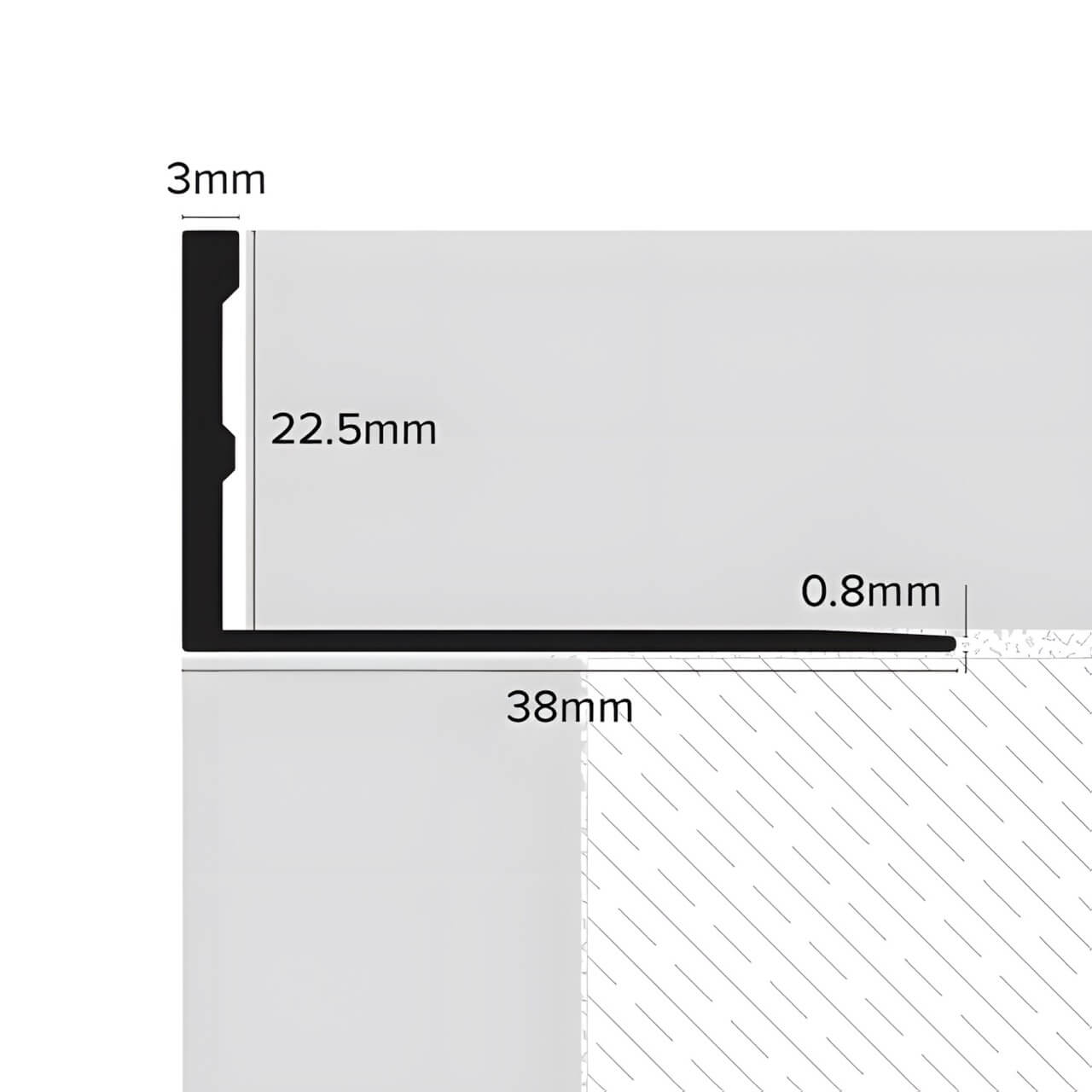

Manufactured from extruded aluminium (AA 6063 T6), the ESA profile delivers strength, durability and long-lasting performance. With multiple depths from 2.25mm up to 22.5mm, this profile adapts perfectly to a wide range of tile thicknesses.

For a complete and professional finish, pair your ESA profile with matching ESC Aluminium External Corner Pieces — designed to provide seamless alignment and protection for external tile corners.

Dimensions may vary by up to ±5mm in line with supplier manufacturing tolerances.

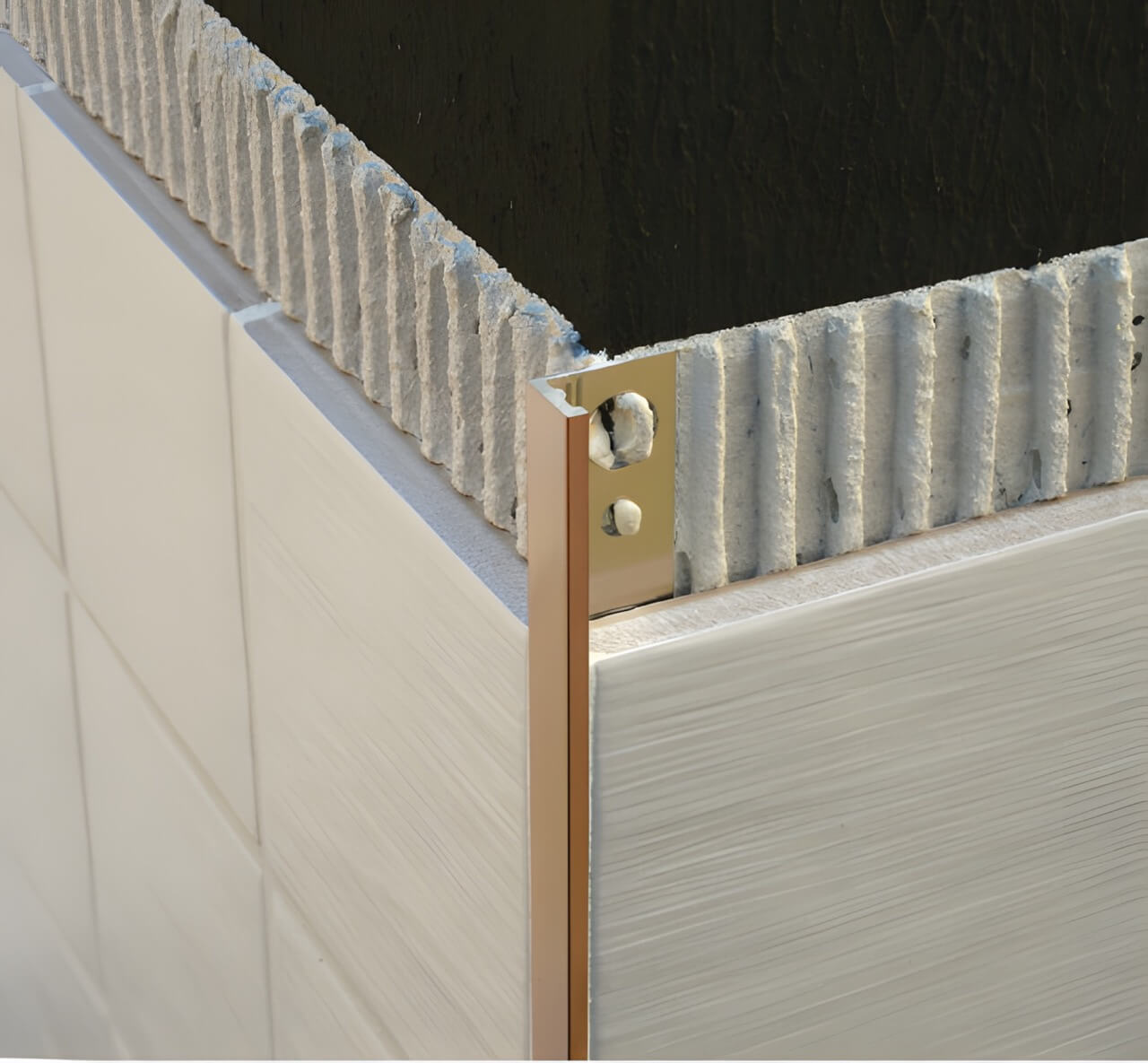

  1. Select ESA profile according to the tile thickness.
  2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
  3. Press the perforated anchoring leg of the ESA into the tile adhesive and align. Mechanical fixing can be applied if required.
  4. Trowel additional adhesive over the anchoring leg to ensure full coverage.
  5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile. The profile should not be higher than the tile surface, but up to 1mm lower.
  6. Fill the joint completely with grout and remove any residue immediately to prevent corrosion or staining.
Profile TypeEdging Strip
Qty per Pack / Box1
MaterialAluminium
Suitable for Floor TypeTile

What materials is the ESA profile made from?

The ESA is made from extruded aluminium (AA 6063 T6), available in anodised and powder-coated finishes.

Can the ESA profile be used externally?

Yes, powder-coated finishes make the ESA suitable for external applications, with working temperatures between -10°C and 60°C.

What depths are available for the ESA profile?

ESA profiles are available in depths from 2.25mm to 22.5mm, accommodating a wide variety of tile thicknesses.

Does the ESA profile require special maintenance?

No, it does not require special maintenance. Cleaning with a mild polishing agent is sufficient, though anodised finishes may require recoating if damaged.
