✓ In Stock
| Catalogue Reference | BN1SLR-R |
|---|---|
| Uniclass2015 | Pr_35_90_31_74 RIGID STAIR NOSINGS |
| General Description | Ribbed Tread/Raked Front Stair Nosing with Ramped Back Edge |
| Nosing Construction | Solid Stair Nosing |
| Material | Solid Brass Grade H/H CZ108 BS EN12164:2016 |

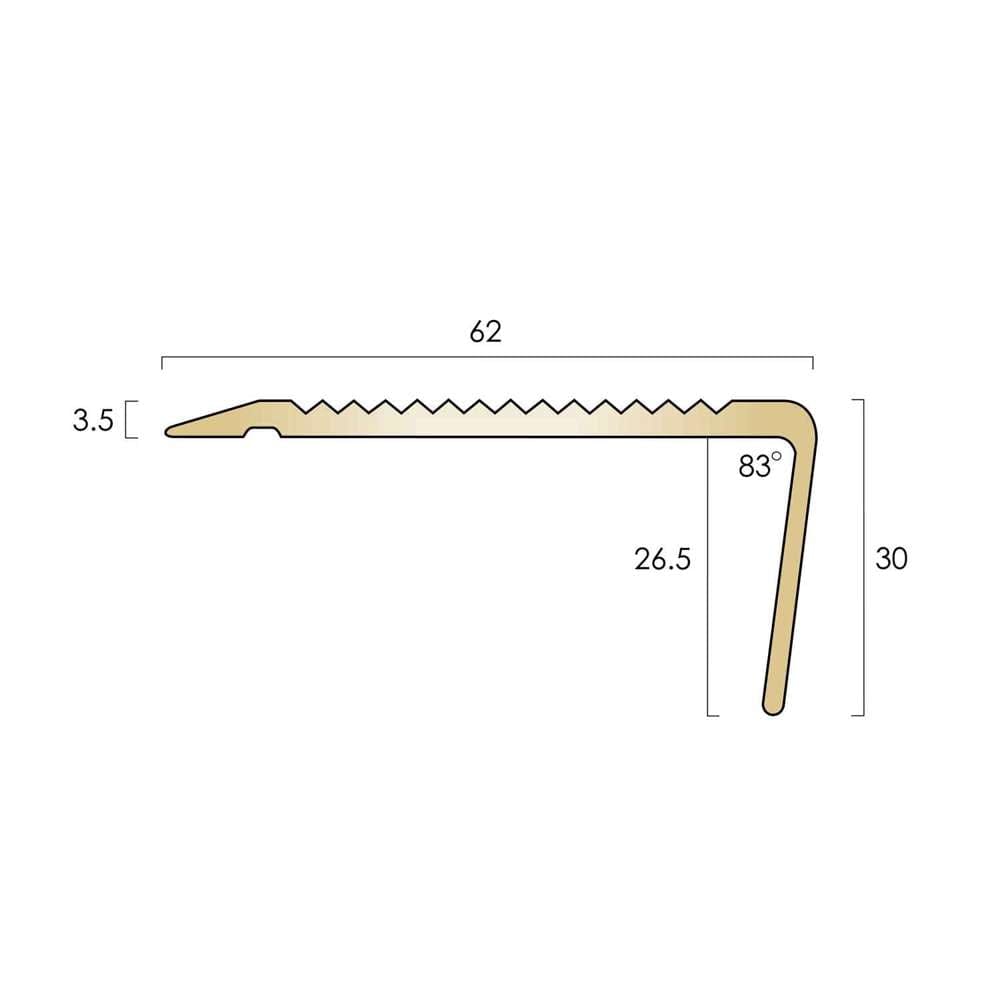

| Tread Dimension | 62 mm |
| Nose Dimension | 30 mm |
| Gauge | 3.5 mm ramping down to 1mm |
| Supplied Cut To Size, up to a maximum length of | 2500 mm |

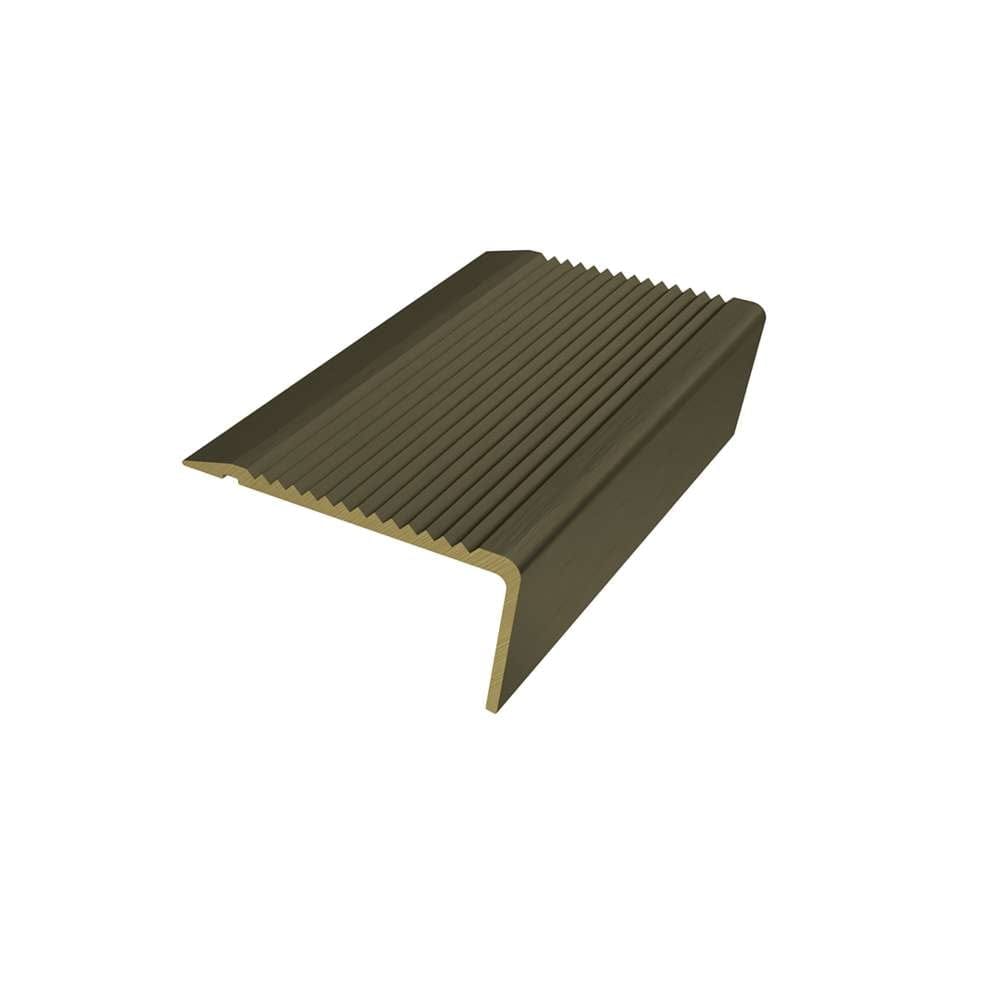

| Finishes Available & Light Reflective Values | Antique Bronze - LRV: 9.15 |
| Slip Resistance Values | SRV Wet: 45 SRV Dry: 73 |
| Drilling | Drilled for countersunk screws Undrilled |
| Screw Size | 8 |
| Application | To finish the nose edge of stone and timber stairs and stairs fitted with ceramics or hard flooring, e.g. laminates, LVT, vinyl, lino. |
| Suitability | Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings. Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect. |
| Post Consumer Recyclability | This product is 100% recyclable at suitable disposal centres. |
| Profile Type | Stair Nosing |
Price range: £143.45 through £155.95 inc. VAT

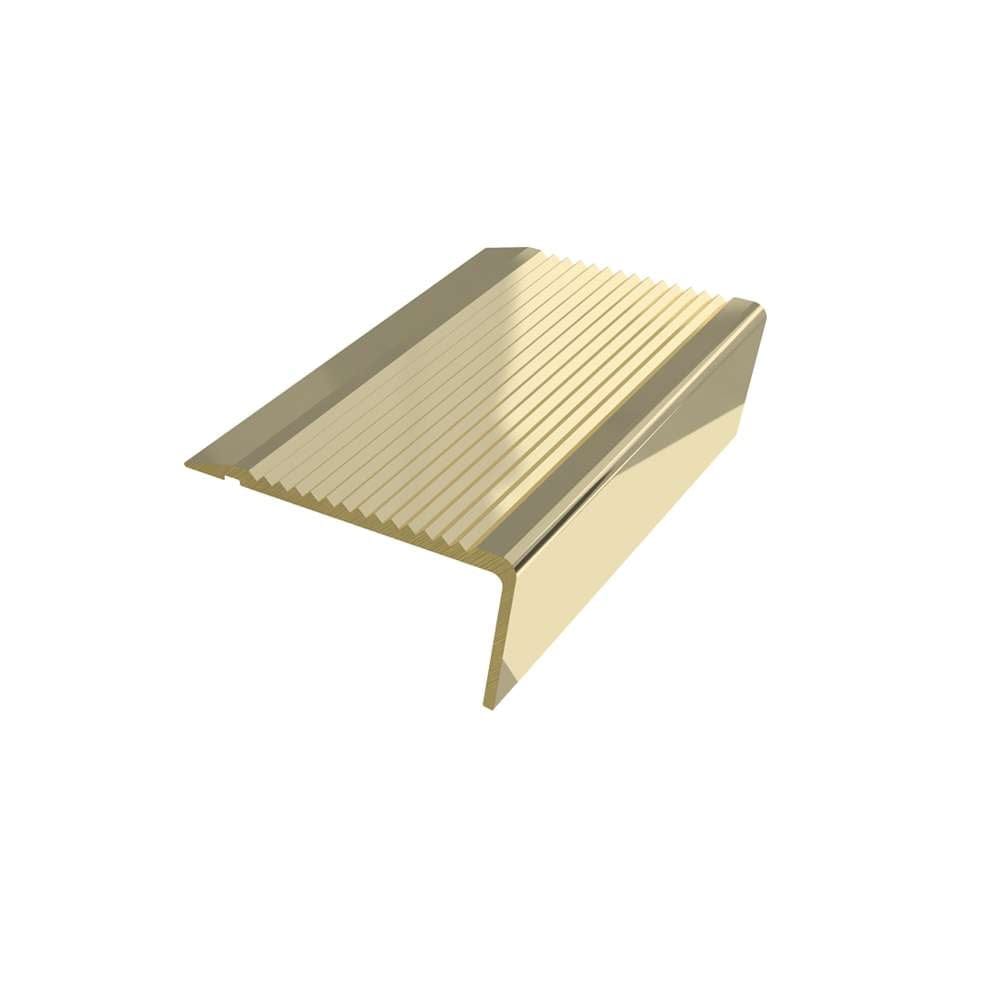

The CAT BN1SLR-R Brass Stair Nosing is a premium solid brass stair edging designed to deliver exceptional durability, safety, and a refined finish. Featuring a serrated slip-resistant tread, this profile enhances grip underfoot, making it ideal for both commercial and residential environments.
Manufactured from high-quality CZ108 solid brass, the BN1SLR-R incorporates a raked back riser and ramped back edge, ensuring smooth transitions and compatibility with a wide range of floor finishes including LVT, vinyl, laminates, ceramics, stone, and timber.
With a 62mm tread and 30mm nose, this stair nosing provides excellent coverage and protection to the step edge while maintaining a sleek, professional appearance. Suitable for heavy foot traffic areas such as hotels, offices, schools, and retail spaces, it combines performance with long-lasting aesthetics.
Available in CAT’s four signature brass finishes, the BN1SLR-R can be supplied drilled or undrilled for flexibility in installation and is precision manufactured for a high-quality finish.
