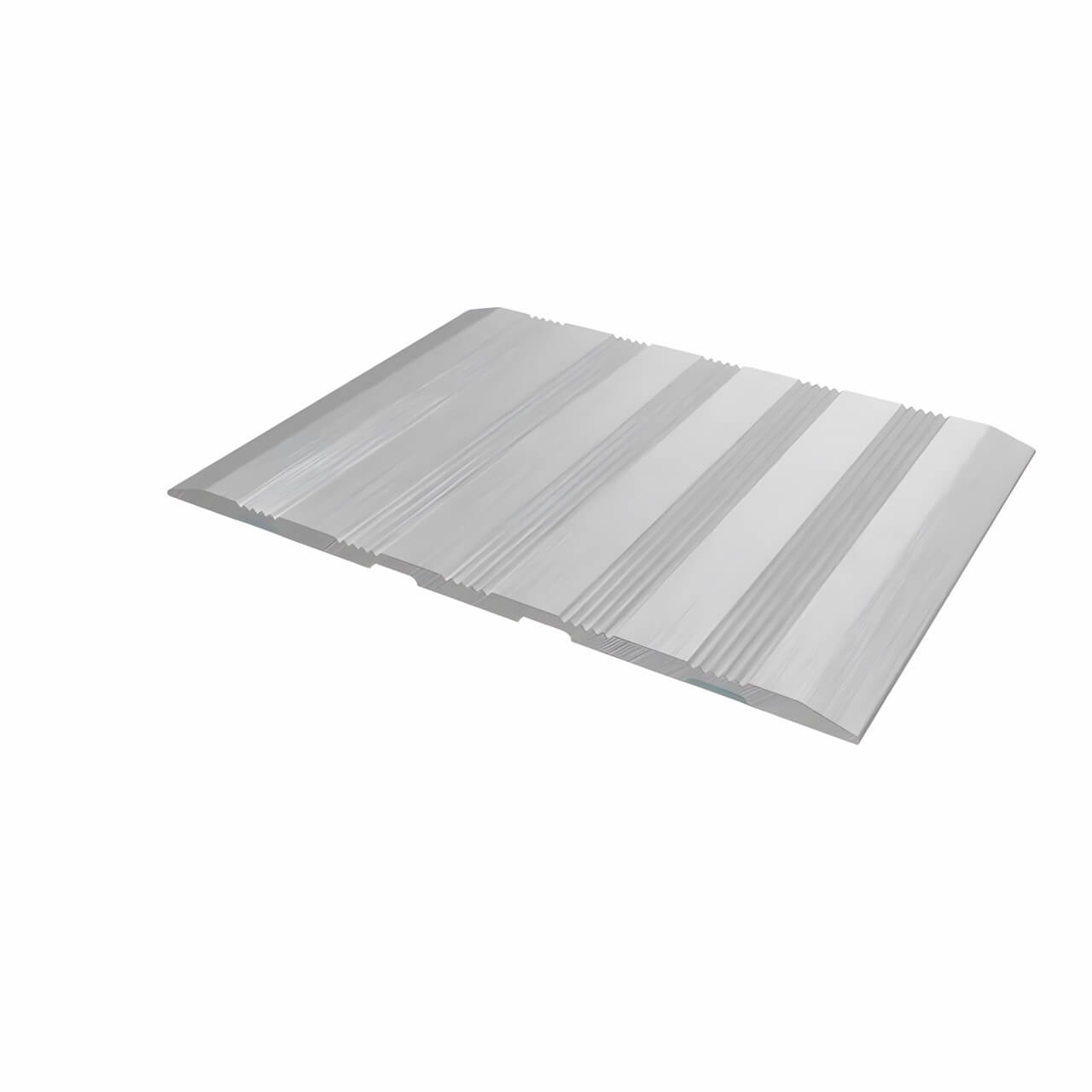

The CAT AC135 Aluminium Cover Plate is a high-quality 135mm wide floor transition strip designed to bridge adjoining floor coverings while allowing for natural expansion and movement between surfaces. Manufactured from durable Aluminium Alloy 6063 T6, the AC135 is suitable for heavy contract environments as well as premium domestic installations.

Designed with a low-profile ramped edge, the AC135 provides a neat and professional finish between floor coverings while helping to reduce trip hazards. The profile is ideal for use across commercial offices, hotels, schools, retail environments, pubs, cafes and public buildings.

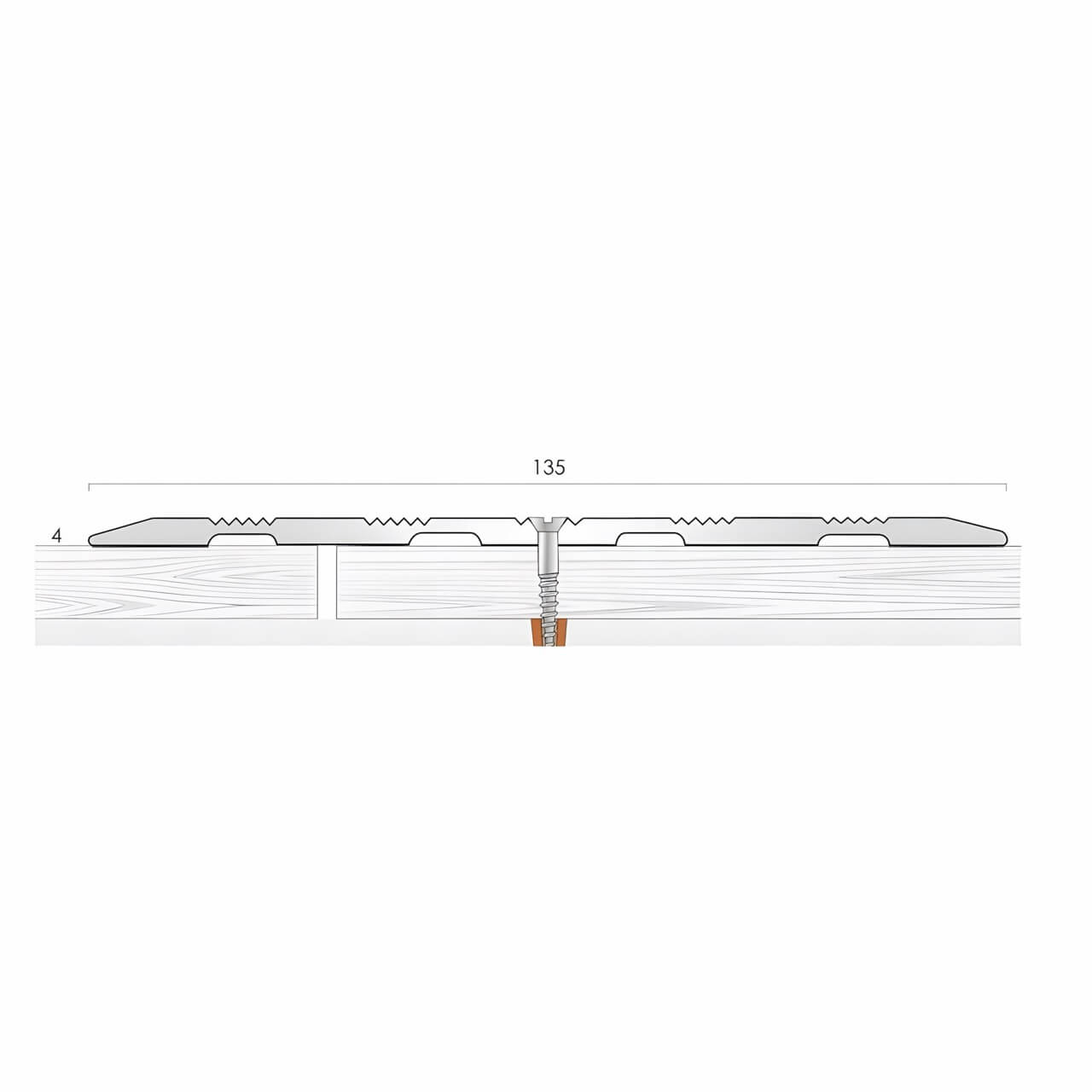

The AC135 can be supplied undrilled with Stick Fix double sided adhesive tape pre-applied to the underside for quick non-mechanical installation. Alternatively, it is available centre drilled for size 8 screw fixing, with visible fixings in the finished installation. Off-centre drilling options are also available upon request.

Finished in Matt Silver Aluminium with a Light Reflective Value (LRV) of 71.65, this aluminium cover strip combines durability, functionality and a clean architectural appearance.

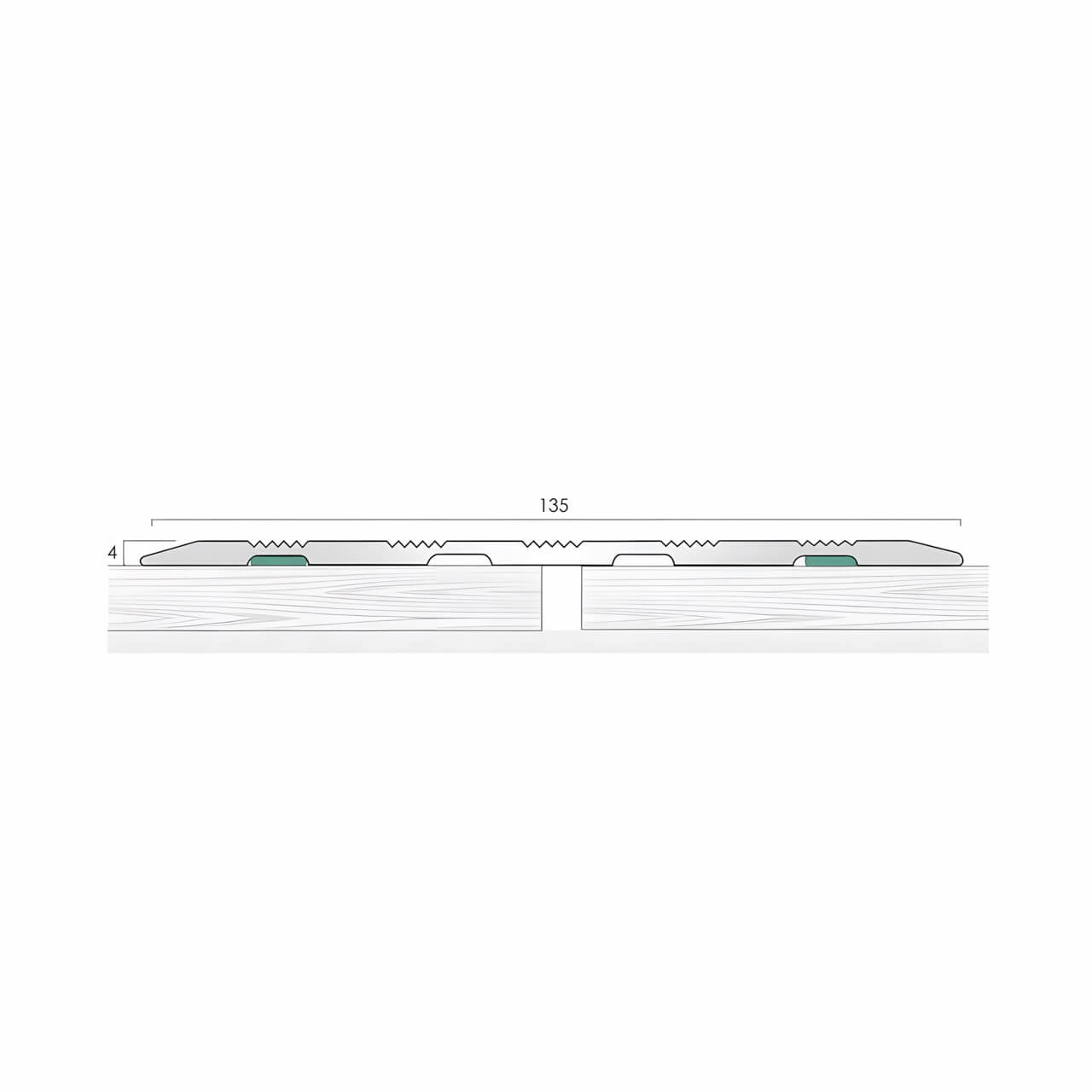

Key Specifications:

• Visible Surface Width: 135mm
• Material: Aluminium Alloy 6063 T6
• Gauge: 4mm
• Profile Height: 4mm ramping to 1.5mm
• Length: 2715mm
• Finish: Matt Silver
• Fixing Options: Stick Fix adhesive, centre drilled or off-centre drilled
• Application: Floor covering transition and expansion cover strip

The AC135 is also fully recyclable and manufactured to the high-quality standards expected from CAT Flooring Accessories.
