BN9 CAT 89mm Solid Brass Heavy Duty Ribbed Tread/Bull Nose Stair Nosing

✓ In Stock

Solid brass construction – durable CZ108 grade material
Slip-resistant serrated tread for enhanced safety

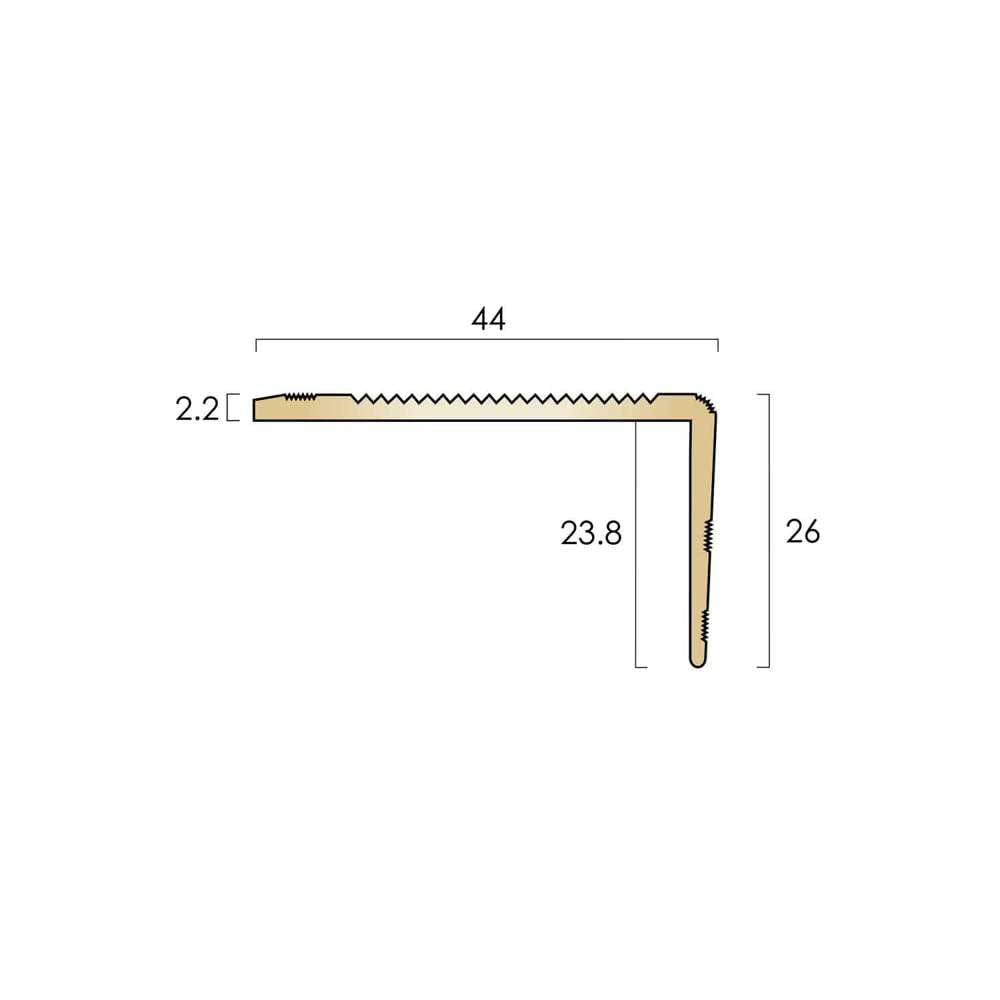

44mm tread x 26mm riser square profile design
Ideal for LVT & vinyl flooring such as Amtico & Polyflor
Available drilled or undrilled in multiple brass finishes

BN9 Datasheet

Catalogue Reference	BN9
Uniclass2015	Pr_35_90_31_74 RIGID STAIR NOSINGS
General Description	Ribbed Tread/Square Front Stair Nosing
Nosing Construction	Solid Stair Nosing
Material	Solid Brass Grade H/H CZ108 BS EN12164:2016
Tread Dimension	44 mm
Nose Dimension	26 mm
Gauge	2.2 mm
Supplied Cut To Size, up to a maximum length of	2700 mm
Finishes Available & Light Reflective Values	Antique Bronze - LRV: 9.15
Slip Resistance Values	SRV Wet: 45 SRV Dry: 73
Drilling	Drilled for countersunk screws Undrilled
Screw Size	6
Compatible Products	BTI25, BTI52
Application	For abutting to 2mm thick flooring to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Suitability	Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings. Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Post Consumer Recyclability	This product is 100% recyclable at suitable disposal centres.
Profile Type	Stair Nosing

Price range: £115.45 through £124.95 inc. VAT

ex. VAT £96.21-£104.13

Finish

Clear

The BN9 Brass Stair Nosing is a premium solid brass stair edging manufactured from high-quality CZ108 grade brass, designed to deliver exceptional durability and a refined finish in both commercial and residential environments.

Featuring a serrated slip-resistant tread and a square riser profile, this low profile stair nosing enhances safety underfoot while maintaining a clean, modern aesthetic. Its 2.2mm gauge construction ensures long-lasting performance in heavy foot traffic areas such as hotels, offices, schools, retail spaces and apartment buildings.

The BN9 is specifically designed to butt seamlessly against vinyl and LVT flooring including popular brands such as Amtico and Polyflor, making it an ideal solution for contemporary flooring installations. It can also be rebated into timber stairs for a flush finish, providing flexibility across a range of applications.

Available in CAT’s four signature brass finishes, this stair nosing can be supplied drilled or undrilled to suit your installation requirements. Each profile is cut to size (up to 2700mm) for precise fitting and professional results.

With excellent slip resistance values (SRV Wet: 45 / Dry: 73) and full recyclability, the BN9 offers a perfect balance of safety, performance and sustainability.

Dimensions may vary by up to ±5mm in line with supplier manufacturing tolerances.

Oops we are still working on this - please check back soon

Catalogue Reference	BN9
Uniclass2015	Pr_35_90_31_74 RIGID STAIR NOSINGS
General Description	Ribbed Tread/Square Front Stair Nosing
Nosing Construction	Solid Stair Nosing
Material	Solid Brass Grade H/H CZ108 BS EN12164:2016
Tread Dimension	44 mm
Nose Dimension	26 mm
Gauge	2.2 mm
Supplied Cut To Size, up to a maximum length of	2700 mm
Finishes Available & Light Reflective Values	Antique Bronze - LRV: 9.15
Slip Resistance Values	SRV Wet: 45 SRV Dry: 73
Drilling	Drilled for countersunk screws Undrilled
Screw Size	6
Compatible Products	BTI25, BTI52
Application	For abutting to 2mm thick flooring to finish the nose edge of stairs. Can be rebated to sit flush in wooden steps. Installation guide available.
Suitability	Heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings. Please Note: Antique Brass and Antique Bronze finishes are a chemically applied process and are hand finished with a variance from batch to batch. They are designed to create an aged, unpolished effect.
Post Consumer Recyclability	This product is 100% recyclable at suitable disposal centres.
Profile Type	Stair Nosing

What flooring types is the BN9 suitable for?

The BN9 is designed for vinyl and LVT flooring such as Amtico and Polyflor, typically up to 2mm thickness.

Can this stair nosing be installed flush into timber stairs?

Yes, the BN9 can be rebated into timber steps to achieve a flush, seamless finish.

Is the BN9 suitable for commercial environments?

Absolutely, it is designed for heavy foot traffic areas including offices, schools, retail and hospitality settings.

What fixing options are available?

The BN9 can be supplied drilled for screw fixing or undrilled for on-site custom installation.
